Switchcraft Conxall

PQG3MRA101

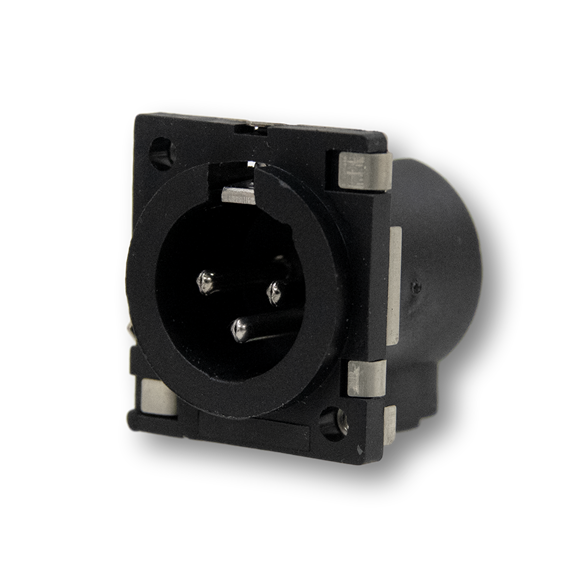

XLR PANEL MOUNT, PLASTIC HOUSING, PC TERMINALS, GROUNDING STRAP

In stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: QG
  • Mounting Type: Panel
  • Mounting Feature: M3 Tapped Holes
  • Gender: Male
  • Contact Size: 14 AWG
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Silver
  • Color: Black
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: XLR
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 10 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 2 lbs
  • Coupling Locking Style: Button Latch

Environmental

  • Flame Rating: UL 94V-0

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Terminal Material: Copper Alloy
