XLR Connectors and 1/4" [6.35mm] jacks in the same, standard size panel mount connector. Available in a variety of termination styles.


Key Features



icon_twoinone_combojax_blue

A stereo 1/4 [6.35mm] jack and a female XLR are combined into the same package, with separate contacts for each

icon_mountingstyles_combojax_blue

Three part numbers are available for design flexibility: vertical PCB mount, horizontal PCB mount, and solder contacts

icon_switchcraft_blue

Switchcraft connectors have been trusted in critical applications all over the world for over 75 years



Configuration

  • Number of Conductors: 6
  • Product Line: Combo Jax
  • Mounting Type: Panel
  • Gender: Female
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: Combo Jack
  • Special Feature: Combo Jack

Electrical

  • Current Rating: 7.5 Amps

Mechanical

  • Coupling Locking Style: Button Latch

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

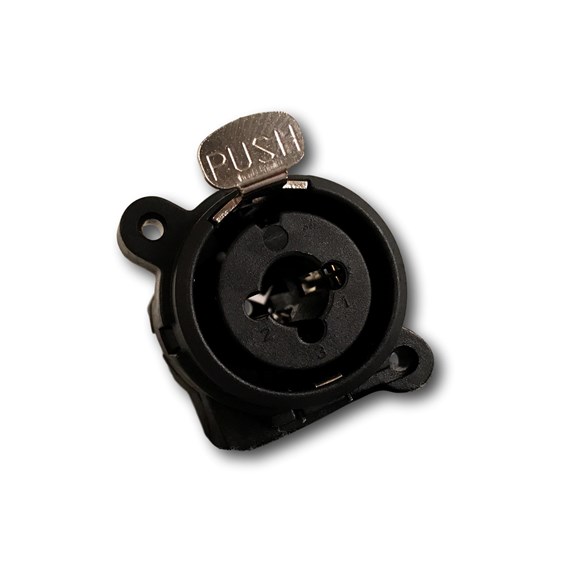

combo_jax
