Switchcraft

TA6FLX

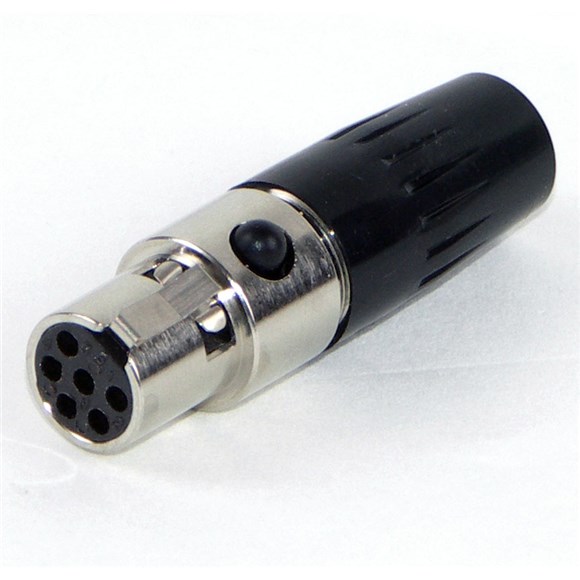

Tini-QG "Mini XLR" 6 Pin Female Cable Mount, No Flex Relief (Large Cable Opening), Silver Pins, Nickel

flex relief omitted for larger diameter cable
In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 6
  • Product Line: Tini-QG
  • Mounting Type: Cord
  • Gender: Female
  • Contact Size: 24 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Nickel/Black
  • Locking: Locking
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: Mini-XLR

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 510000 MOhms
  • Voltage Rating: 4000 Volts
  • Current Rating: 1.5 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 13 lbs
  • Coupling Locking Style: Button Latch
  • Wire Size: 28 AWG

Environmental

  • Humidity Rating: MIL-STD-202 Method 106D
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 213B
  • Vibration: MIL-STD-202 Method 201A
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.19 in

Material

  • Body Material: Zinc
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Insert Material Type: Thermoplastic
  • Terminal Material: Steel
