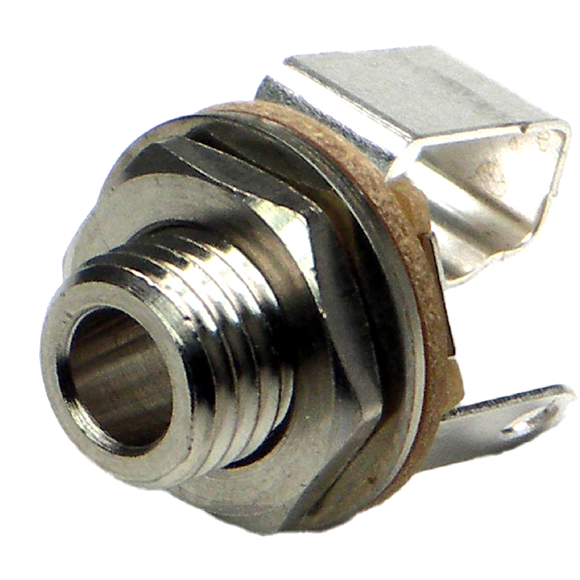

Tini-Jax 2-conductor phone jacks, (for limited space
connecting, mate with miniature phone plugs having 0.141 " diameter fingers and compatible tip shape) are 1/3 the size of Littel-Jax and weigh less than 1/8 ounce. Notched insulators interlock internal parts. Unique tip spring shape mates with Switchcraft Tini-Plug phone plugs. Mounting hole: .250" diameter in panels up to .125" thick (mounting hardware supplied). For insulated mount, order two washers separately, Number S1564 (swedged fiber washer .312" diameter mounting hole) and number S2207 (flat phenolic washer).
Configuration
-
Number of Conductors:
2
-
Product Line:
Tini-Jax
-
Mounting Type:
Panel
-
Mounting Feature:
Open Frame
-
Termination Style:
Solder Cup
-
Color:
Black
-
Locking:
Non-Locking
-
Sealed:
Not Sealed
-
Packaging Type:
Bulk
-
Standard Connector Type:
Tini-Jax
-
Jack-Plug Type:
Jack
Electrical
-
Contact Resistance:
0.075 Ohms
-
Dielectric Withstanding Voltage:
250 Volts
-
Insulation Resistance:
5000 MOhms
-
Current Rating:
0.25 Amps
-
Circuit-Schematic:
Single Open
Mechanical
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Material
-
Body Material:
Copper Alloy
-
Body Plating:
Nickel
-
Insert Material Type:
Rigid Plastic Insulating Spacers
-
Terminal Material:
Copper Alloy Tin-Plated
-
Spring Material:
Copper Alloy Plated
