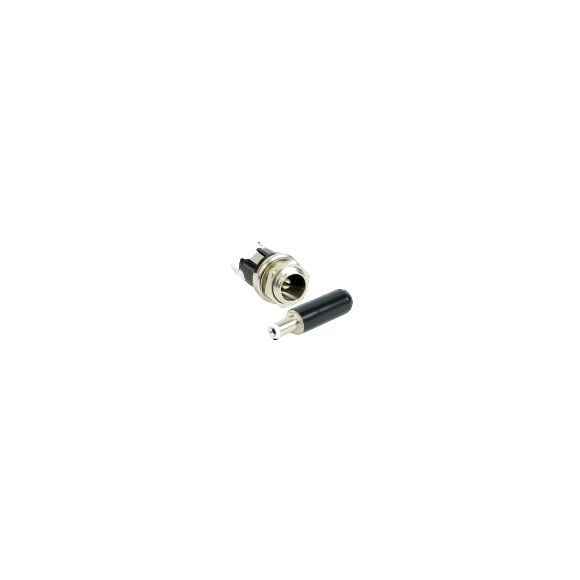

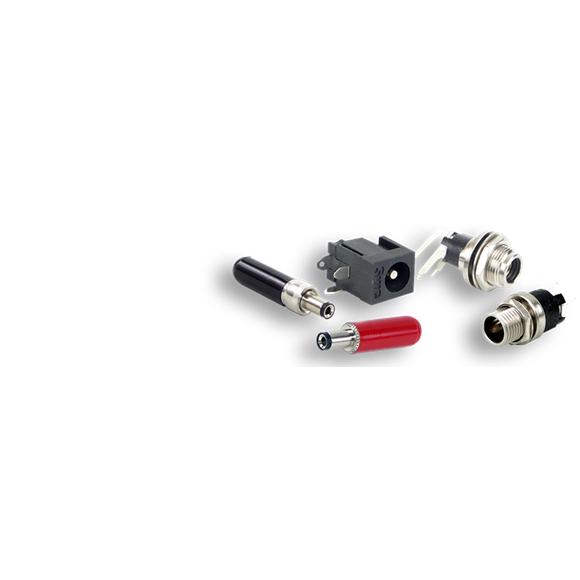

Standard DC Power Jacks & Plugs
Wide range of options. DC power jacks including straight and right angle PC mount, plastic or metal housings, solder terminals and a variety of center pin size options. DC power plugs including red or black plastic handles, solder terminals and a variety of center pin size options.
Key Features
Standard DC Power Jacks and Plugs are available in locking and non-locking versions
They offer straight and right angle PC mount, plastic or metal housings, solder terminals and a variety of center pin size options. Red or black plastic handles also available
As the quality leader and only US manufacturer of DC power jacks, Switchcraft builds products to last
Configuration
-
Number of Conductors:
2
-
Product Line:
Power Jax
-
Sealed:
Not Sealed
-
Standard Connector Type:
DC Barrel Connectors
Electrical
-
Voltage Rating:
24 Volts
-
Current Rating:
5 Amps
Mechanical
-
Coupling Locking Style:
Threaded
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Material
-
Contact Material:
Copper Alloy
