Speakon® Compatible HPC Speaker Connectors
Home>Browse by Category>Connectors>General Connectors>Speakon® Compatible HPC Speaker Connectors

product1

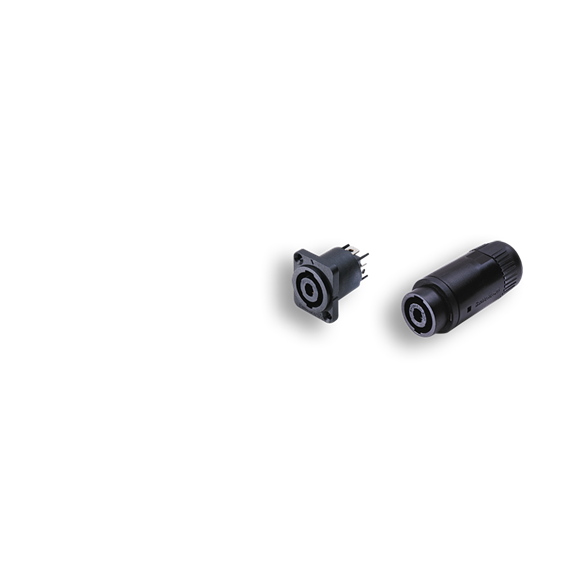

Full range of High Power Connectors (HPC) compatible with Neutrik Speakon 4 pole connectors.




Configuration

  • Product Line: HPC Series
  • Contact Plating: Silver
  • Locking: Locking
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: Speakon-style

Electrical

  • Contact Resistance: 0.01 Ohms
  • Insulation Resistance: 2000 MOhms
  • Voltage Rating: 1500 Volts
  • Current Rating: 30 Amps

Mechanical

  • Life Cycle: 1000 Cycles

Environmental

  • Temperature Range: -55C to +85C
  • Flame Rating: UL 94V-0
  • Moisture Resistance: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101D Test Cond B
  • Mechanical Shock: MIL-STD-202 Method 213B Test Cond K
  • Vibration: MIL-STD-202 Method 201A
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy

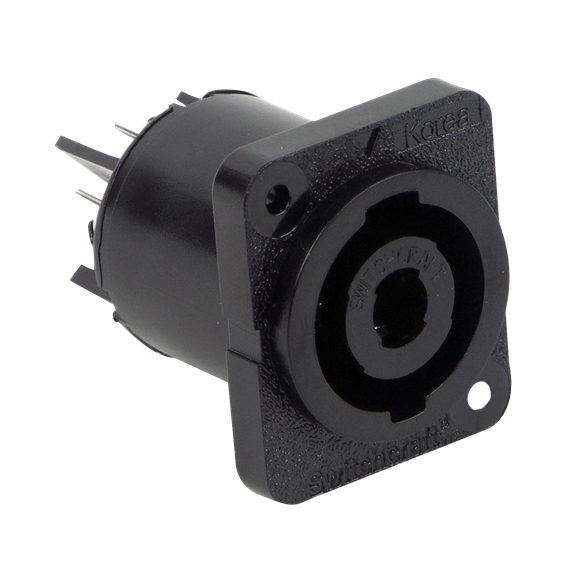

hpcp410f
Enlarge
hpcp410f
  • There are no alternate images available for this product.

  •
