Slide Switches

Slide Switches

product1
These high quality switches incorporate double wipe sliders to insure wiping of contacts. All switches are rated at 0.5A DC and 3A AC, 125V non-inductive. Available in 2 and 3 postion, locking and non locking styles, up to 4 poles, with solder or pc terminals. Most are UL and CSA recognized.




Configuration

  • Mounting Type: Panel
  • Color: Black
  • Packaging Type: Bulk

Electrical

  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 1000 MOhms

Environmental

  • Temperature Range: -20C to +70C
  • Maxiumum Temperature: 70 C

Compliance

  • RoHS Compliant: Compliant
  • CSA: 1
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Steel

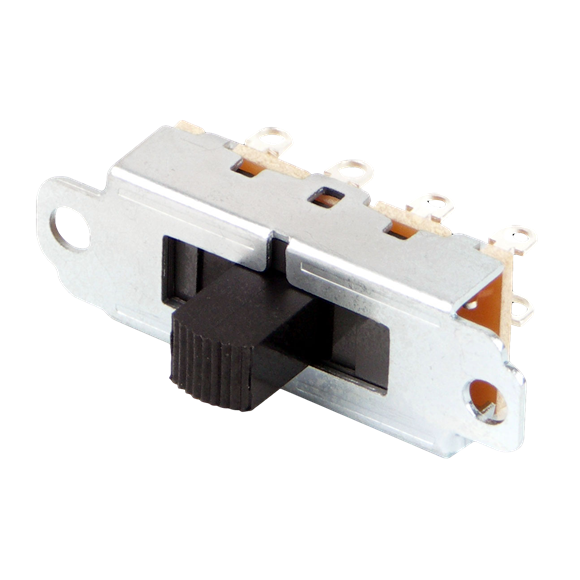

46313ldrx
Enlarge
46313ldrx
  • There are no alternate images available for this product.

  •
loading


Available Products
