Sealed XLR Connectors

Sealed XLR Connectors
Home>Browse by Category>Connectors>General Connectors>XLR Connectors>Sealed XLR Connectors

product1
Sealed XLR Connectors are available in cable, panel and cable-to-cable options. Panel connector sealed to IP68 NEMA 250 (6P) unmated. Mated pairs sealed to IP66. Available in silver or gold plated contacts. Perfect for applications such as outdoor communications equipment, audio applications, instrumentation and stage lighting.


Key Features



icon_IP68_blue

Panel mount connectors are sealed to IP68 when unmated, while cable plugs are sealed to IP66.

icon_1000cycles_blue

They are rated for at least 1,000 insertion/ withdrawal cycles

icon_switchcraft_blue

Switchcraft XLR sealed connectors are built to the highest quality standards



Configuration

  • Product Line: QG
  • Mounting Type: Panel Cord
  • Termination Style: Solder Cup
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: XLR

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 125 Volts
  • Current Rating: 15 Amps

Mechanical

  • Life Cycle: 1000 Cycles
  • Operating Force: 8 lbs
  • Coupling Locking Style: Button Latch

Environmental

  • Temperature Range: -40C to +65C
  • Shielding: Shielded
  • Moisture Resistance: MIL-STD-202G Method 106G
  • Salt Spray: MIL-STD-202G Method 101E Test Cond B
  • Mechanical Shock: MIL-STD-202G Method 107G
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP Rating: IP67 IP68 IP66
  • IP66: 1

Dimensional

  • Diameter: 0.76 in

Material

  • Insert Material Type: Thermoplastic
  • Terminal Material: Copper Alloy Tin-Plated
  • Spring Material: Copper Alloy Tin-Plated

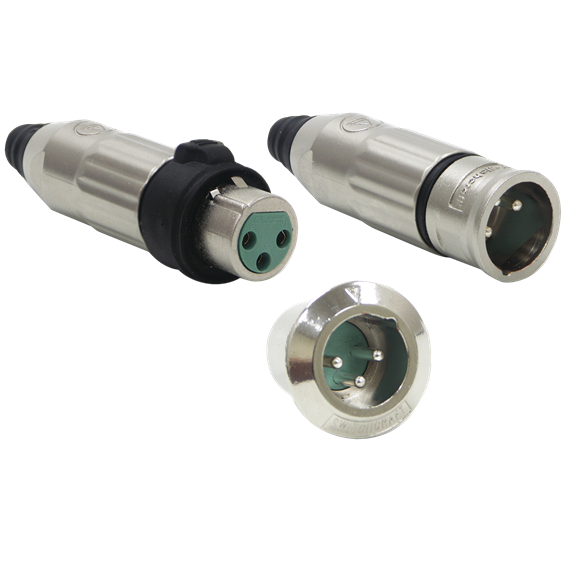

sealed_xlr_group
Enlarge
sealed_xlr_group
  • There are no alternate images available for this product.

  •
