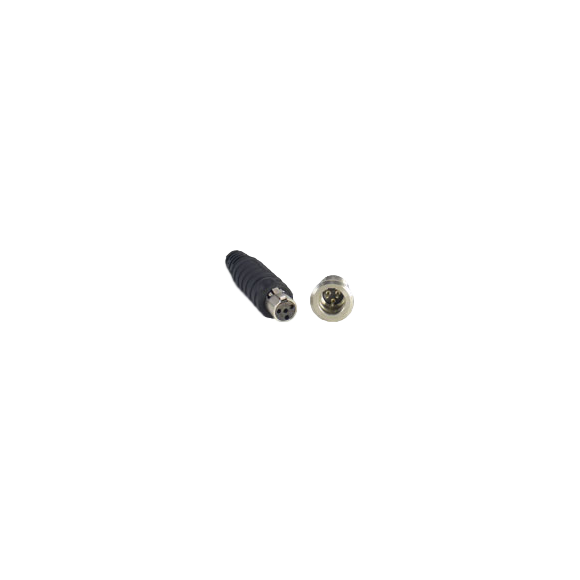

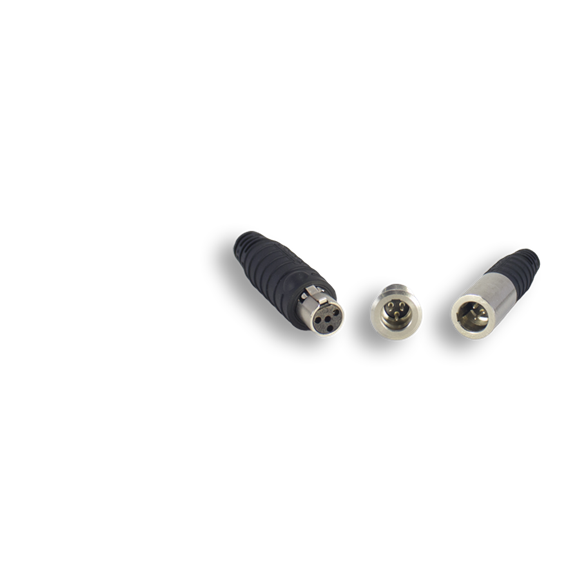

Sealed Tini-QG Mini-XLR Connectors
These circular connectors are waterproof to IP66 when mated and IP65 when unmated (panel only). They also feature a robust push-button latching mechanism and can withstand at least 5,000 insertions/withdrawals. They are also fully compatible with unsealed Tini-QG connectors.
Key Features
Sealed Tini-QG Mini XLR connectors have a IP68 rated water resistant
They are rated for at least 5,000 insertion/ withdrawal cycles
Sealed Tini QG Mini XLR connectors are built in our Switchcraft factory in Chicago to the highest quality standards
Configuration
-
Product Line:
Tini-QG
-
Mounting Type:
Panel
Cord
-
Termination Style:
Solder Cup
-
Contact Plating:
Silver
-
Locking:
Locking
-
Sealed:
Sealed
-
Packaging Type:
Bulk
-
Standard Connector Type:
Mini-XLR
Mechanical
-
Life Cycle:
5000 Cycles
-
Coupling Locking Style:
Button Latch
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
-
IP Rating:
IP66
-
IP65:
1
-
IP66:
1
Dimensional
Material
-
Body Material:
Copper Alloy
-
Body Plating:
Nickel
-
Contact Material:
Copper Alloy
