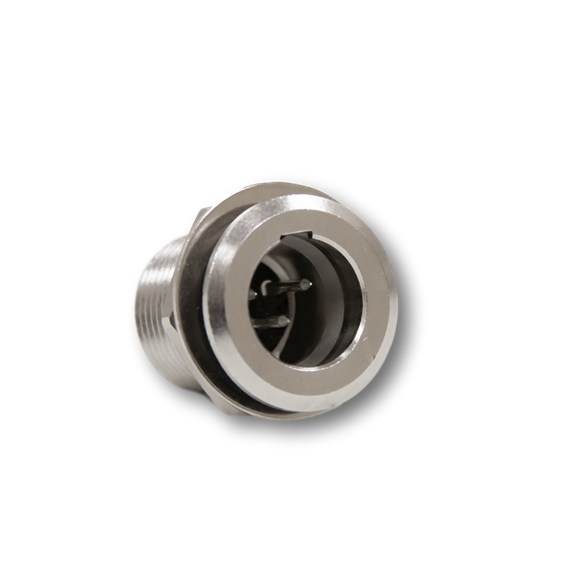

tb3ms
Enlarge
tb3ms
  • There are no alternate images available for this product.

  •
Switchcraft

TB3MS

Sealed Mini-XLR, Panel Mount, 3-Pin Male

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: Tini-QG
  • Mounting Type: Panel
  • Gender: Male
  • Contact Size: 24 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: Mini-XLR

Electrical

  • Current Rating: 5 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Button Latch

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP Rating: IP66
  • IP65: 1
  • IP66: 1

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • O-Ring Material: Thermoplastic Rubber

Sealed Tini-QG® Overview
