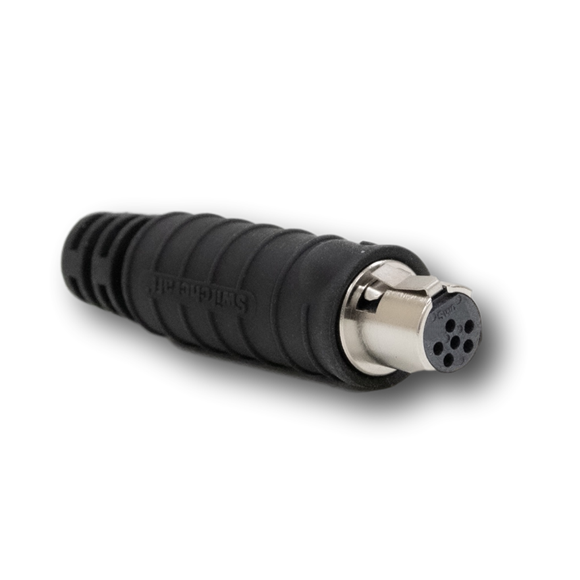

ta6fs11
Enlarge
ta6fs11
  • There are no alternate images available for this product.

  •
Switchcraft

TA6FS25

Sealed Mini-XLR, Cable End, 6-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 6
  • Product Line: Tini-QG
  • Mounting Type: Cord
  • Gender: Female
  • Contact Size: 28 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Handle Material: Rubber Overmolded Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: Mini-XLR

Electrical

  • Contact Resistance: 0.01 Ohms
  • Current Rating: 1.5 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Button Latch

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP Rating: IP66
  • IP65: 1
  • IP66: 1

Dimensional

  • Cable Opening: 0.26 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Spring Material: Copper Alloy
