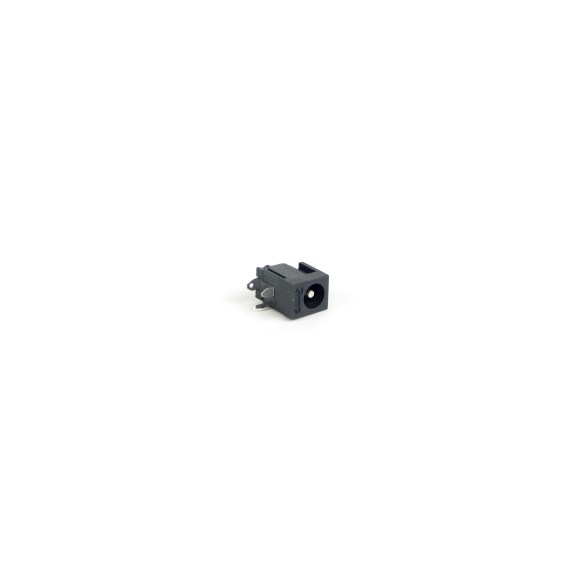

RAPC712X

Configuration

• Number of Conductors: 2
• Product Line: Power Jax
• Mounting Type: Panel
• Termination Style: Right Angle PC Mount
• Contact Plating: Silver
• High Temperature: Standard Temperature
• High Current: Standard Current
• Locking: Non-Locking
• Sealed: Not Sealed
• Packaging Type: Bulk
• Standard Connector Type: DC Barrel Connectors
• Shunt: Shunted
• Jack-Plug Type: Jack
• PC Mount Style: Thru-Hole
• Center Pin Size: 2.5 mm

Electrical

• Contact Resistance: 0.05 Ohms
• Dielectric Withstanding Voltage: 250 Volts
• Insulation Resistance: 100 MOhms
• Voltage Rating: 24 Volts
• Current Rating: 5 Amps
• Circuit-Schematic: Single Closed

Mechanical

• Life Cycle: 5000 Cycles

Environmental

• Temperature Range: -30C to 65C
• Shielding: Unshielded
• Minimum Temperature: -30 C
• Maxiumum Temperature: 65 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Material

• Contact Material: Copper Alloy
• Contact Plating Type: Silver
• Terminal Material: Copper Alloy Silver Plated
• Sleeve Material: Copper Alloy Silver Plated
