RCA Plugs

RCA Plugs
Home>Browse by Category>Jacks and Plugs>Audio Jacks and Plugs>RCA Series>RCA Plugs

product1

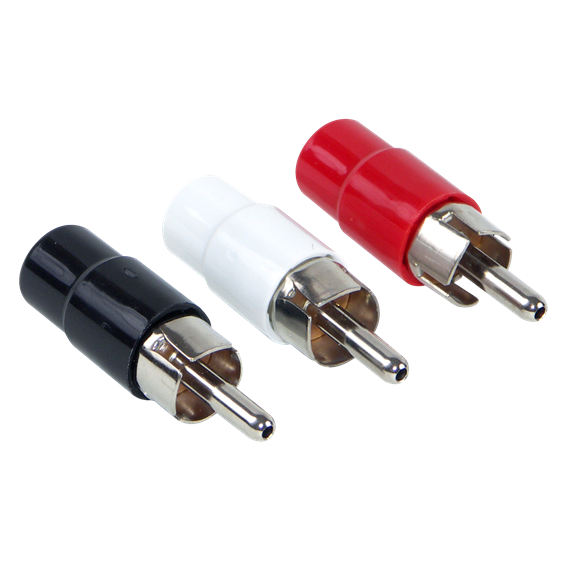

Switchcraft offers Wide range of RCA Plugs for any critical application. Plugs are made in USA in Switchcraft's Chicago factory. Options include straight and right angle with metal or plastic handles with several plating options.


Key Features



icon_durability_blue

RCA plugs are machined from a durable, high quality zinc alloy material

icon_options_blue

They are offered in right angle or straight styles with black, nickel, and red finishes

icon_madeinUSA_blue

Made in USA to the high standards that have made Switchcraft the leading name in plugs



Configuration

  • Number of Conductors: 2
  • Mounting Type: Cord
  • Termination Style: Solder Cup
  • Standard Connector Type: RCA
  • Jack-Plug Type: Plug

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 250 Volts
  • Current Rating: 6 Amps

Environmental

  • Temperature Range: -40C to +85C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy

rca_plugs
Enlarge
rca_plugs
  • There are no alternate images available for this product.

  •
