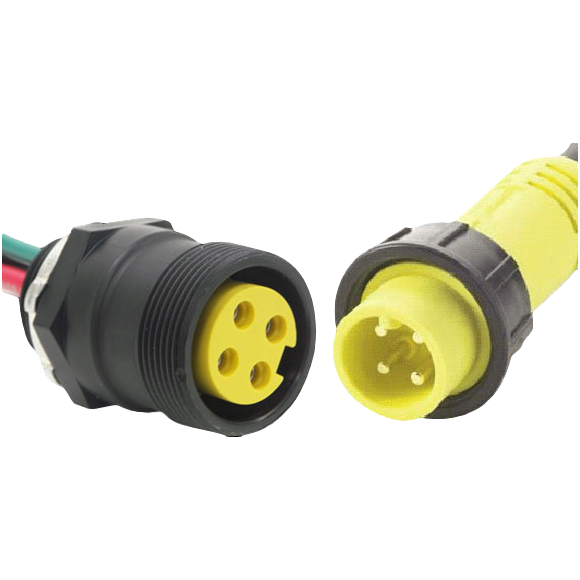

Specifications
Electrical Ratings: Up to 30A / 600V AC/DC
Environmental: NEMA 6P, IP68, RoHS
Temperature Rating: -4oF to 212oF ( -20oC to 100oC)
Certifications: UL Recognized, File #E150822
Contacts: Copper Alloy, Gold Plated
Conductor Sizes: 2, 3 & 4 qty., #10, #12 or #14
Inserts: Thermoplastic elastomer (TPE) with optional PVC or PUR
Overmold: Thermoplastic elastomer (TPE) with optional PVC or PUR
Coupling Nuts & Panel Shell Material: Thermoplastic elastomer (TPE) with optional
aluminum or stainless steel
Cable/Wire:
-Cable: 2, 3 & 4 contacts, #10,#12, or #14 AWG
-Black or Yellow oil resistant thermoplastic elastomer jacket with optional PVC or PUR
-Fine stranded copper conductors
-600V, SEOW, 105oC (221oF)
