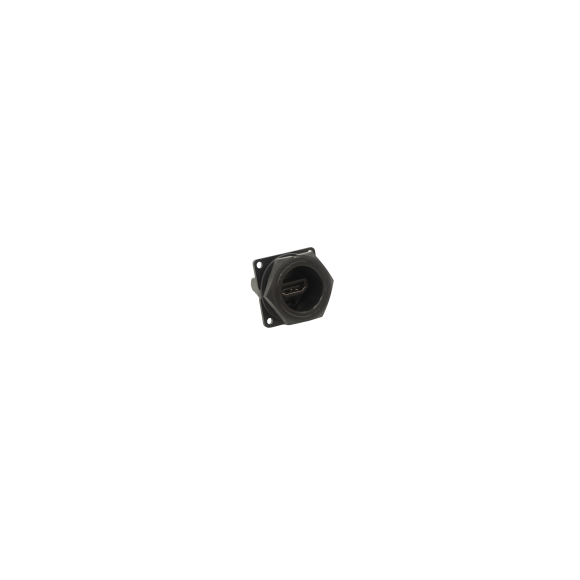

dcp-hdmi
Enlarge
dcp-hdmi
  • There are no alternate images available for this product.

  •
Conxall

DCP-HD19B-HD

Old PN: DCP-HDMIB-HD, *HDMI-Style Panel Connector to 20 Pin Header-Quick Connect

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 19
  • Product Line: Data-Con-X
  • Mounting Type: Panel
  • Termination Style: PCB Header
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: HDMI
  • PC Mount Style: Header

Mechanical

  • Coupling Locking Style: Bayonet

Environmental

  • Shielding: Shielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Conxall
