Factory molded cables in standard lengths, available from off the shelf. Utilizing a separate o-ring, Mini Con X connectors are available up to 4-#16 pins/sockets, 6-#20 pins/sockets, 5-#16 cable end socket and 7&8-#20 cable end sockets. Meets NEMA 6P when mated.




Typical Specifications

Rating: 4.8 thru 13.0A, 600V
Conductor Size:
#16 Contacts, 16 thru 18 AWG
#20 Contacts, 20 thru 24 AWG
Configuration: 2 thru 5 #16 Contacts or 2 thru 8 #20 Contacts
Certification:
UL Recognized File #E150822 - 600V AC/DC
CSA Certified File #181200 - 600V
U.L. Temperature 75C max.
Not for current interruption

Material Specifications


Cable Pin/Socket

Backshell (Removable Twist Lock): Nylon, UL Recognized, Black
Grommet: Santoprene Rubber, Black
Coupling Ring: Nylon, UL Recognized, Black
Contacts:  Brass, Gold over Nickel
Connector Body: Nylon, UL Recognized, Black
O-Ring: Neoprene Rubber, Black

 Gasket, O-Ring, & Grommet materials are suitable for storage -40C to +90C (-40F to +194F).
Consult factory for higher temperature requirements.

Configuration

  • Termination Style: Blunt Cut
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk

Mechanical

  • Coupling Locking Style: Bayonet
  • Length: 79 in

Material

  • Cable Color: Black

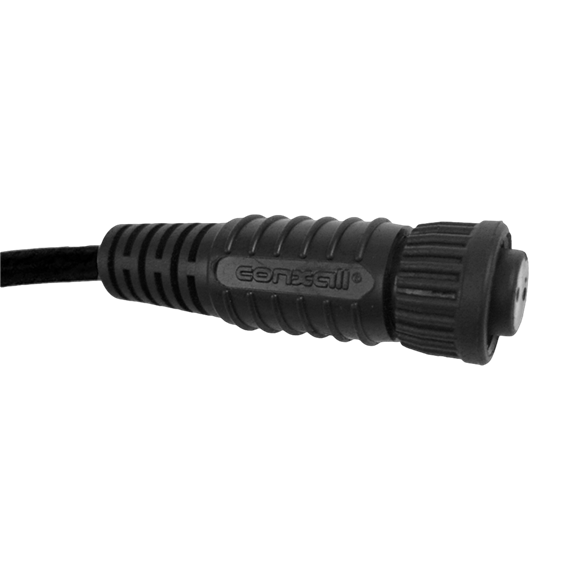

mini_flex_cable
