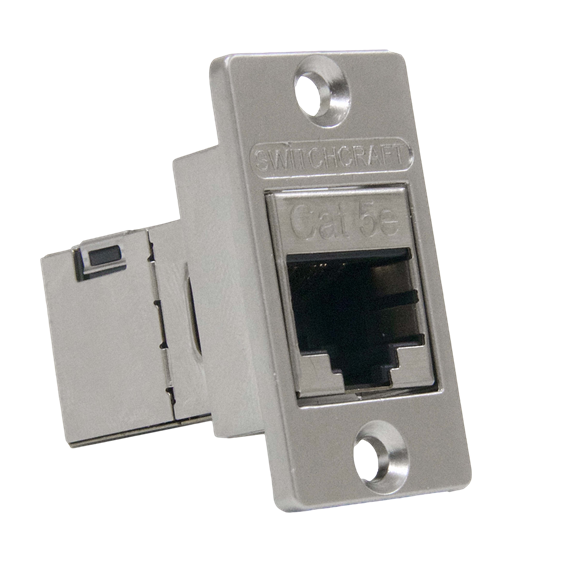

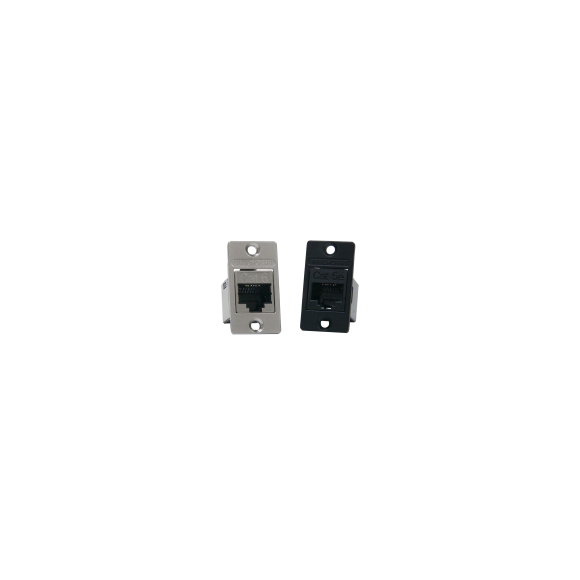

NH Series Narrow Panel Mount Connectors
NH series reduces the width of the connector from 26mm to 19mm, saving space and increasing the number of connectors that fit into a standard rack from 16 to 20. Inside are the same trusted RJ45 connectors in a variety of configurations, including easily field terminated IDC versions.
Key Features
![](/assets/1/6/icon3.jpg)
![icon_nh_housing_blue](/assets/1/6/MainFCKEditorDimension/icon_nh_housing_blue.png)
The thick, solid metal housing was designed to stand up to the most demanding applications
![](/assets/1/6/icon3.jpg)
![icon_options_blue](/assets/1/6/MainFCKEditorDimension/icon_options_blue.png)
The flexible design can be utilized in a wide variety of readily-available standard panels or integrated into OEM products
![](/assets/1/6/icon3.jpg)
![icon_switchcraft_blue](/assets/1/6/MainFCKEditorDimension/icon_switchcraft_blue.png)
Switchcraft connectors have been trusted in critical applications all over the world for over 75 years
Configuration
-
Number of Conductors:
8
-
Product Line:
NH Series
-
Mounting Type:
Panel
-
Mounting Feature:
Countersunk Holes
-
Packaging Type:
Bulk
Mechanical
-
Coupling Locking Style:
Button Latch
Compliance
-
RoHS Compliant:
1
-
REACH Compliant:
1
-
Brand:
Switchcraft
