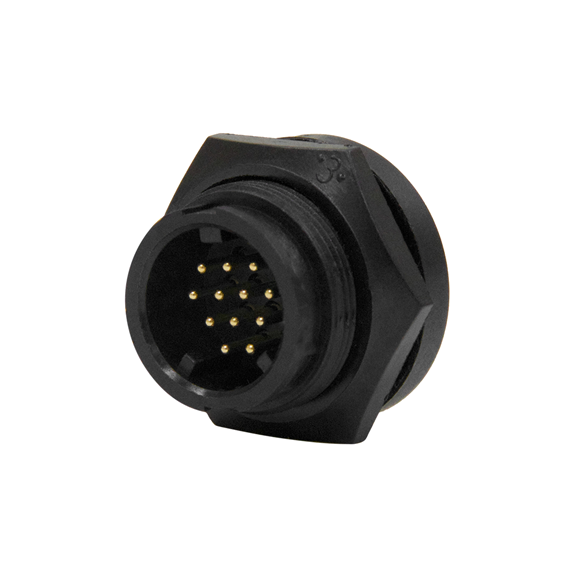

428x-12pg-300
Enlarge
428x-12pg-300
  • There are no alternate images available for this product.

  •
Conxall

W4280-12PG-300

Multi-Con-X Panel, 12-pin #20, Male, Crimp, Black, No Wing, Bulk

Out of stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 12
  • Product Line: Multi-Con-X
  • Mounting Type: Panel
  • Gender: Male
  • Contact Size: 20 AWG
  • Termination Style: Crimp
  • Contact Plating: Gold
  • Epoxy: Without Epoxy
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Insert Material: Thermoplastic
  • Packaging Type: Bulk

Electrical

  • Voltage Rating: 600 Volts
  • Current Rating: 5 Amps

Mechanical

  • Life Cycle: 300 Cycles
  • Coupling Locking Style: Bayonet
  • Mounting Torque: 10 in-lbs

Environmental

  • Temperature Range: -40?C to +85?C
  • Shielding: Unshielded
  • Flame Rating: UL 94V-0
  • Salt Spray: 300 Hr salt spray when mated
  • Minimum Temperature: -40 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Conxall
  • IP Rating: IP67
  • UV Rating: F1
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • Current Interruption: Not for Current Interruption

Dimensional

  • Outer Diameter: 0.875 in

Material

  • Body Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating Type: Gold
  • Insert Material Type: UV Resistant
  • O-Ring Material: Elastomer
