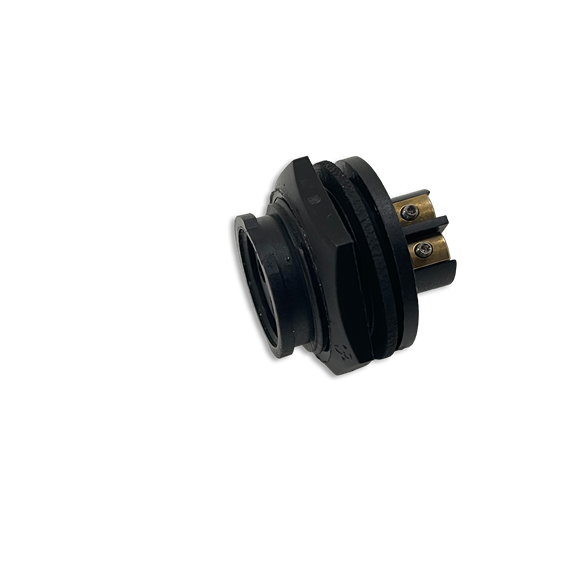

W4Z85-4SG-P-300

Configuration

• Number of Conductors: 4
• Product Line: Multi-Con-X
• Mounting Type: Panel
• Gender: Female
• Contact Size: 14 AWG
• Termination Style: Screw Terminals
• Contact Plating: Gold
• Epoxy: Without Epoxy
• Color: Black
• Locking: Locking
• Sealed: Sealed
• Insert Material: Thermoplastic
• Packaging Type: Bulk

Electrical

• Voltage Rating: 600 Volts
• Current Rating: 13 Amps

Mechanical

• Life Cycle: 300 Cycles
• Coupling Locking Style: Insta-Click Positive Lock
• Mounting Torque: 10 in-lbs

Environmental

• Temperature Range: -40?C to +85?C
• Shielding: Unshielded
• Flame Rating: UL 94V-0
• Salt Spray: 300 Hr salt spray when mated
• Minimum Temperature: -40 C
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Conxall
• IP Rating: IP68
• UV Rating: F1
• IP65: 1
• IP66: 1
• IP67: 1
• IP68: 1
• Current Interruption: Not for Current Interruption

Dimensional

• Outer Diameter: 0.875 in

Material

• Body Material: Thermoplastic
• Contact Material: Copper Alloy
• Contact Plating Type: Gold
• Insert Material Type: UV Resistant
• O-Ring Material: Silicone
