Multi - Con-X® Connectors 0.875" OD
Home>Browse by Category>Connectors>Harsh Environment Connectors>Sealed Circular Connectors>Multi - Con-X® Connectors 0.875" OD

product1
Utilizing a separate o-ring, Multi Con X connectors are available up to 3-#12 pins/sockets, 4-#16 pins/sockets, and 12-#20 pins/sockets. 4-#12 and 5&6-#16 available in cable end socket only. Meets NEMA 6P when mated.


Key Features



icon_IP68_blue

The Con-X series is sealed to IP67 or IP68 for harsh environments when used with a molded cable assembly

icon_600V_blue

600V voltage rating makes it an ideal solution for power or signal

icon_madeinUSA_blue

Made in USA to the high standards that have made Conxall the leading name in harsh environment connectors



Configuration

  • Product Line: Multi-Con-X
  • Insert Material: Standard
  • Special Feature: Mixed Contact Size

Mechanical

  • Coupling Locking Style: Bayonet

Environmental

  • Shielding: Unshielded

Compliance

  • RoHS Compliant: Compliant
  • Brand: Conxall
  • IP Rating: IP67 IP69K
  • IP65: 1
  • IP66: 1
  • IP67: 1

Dimensional

  • Diameter: 0.88 in

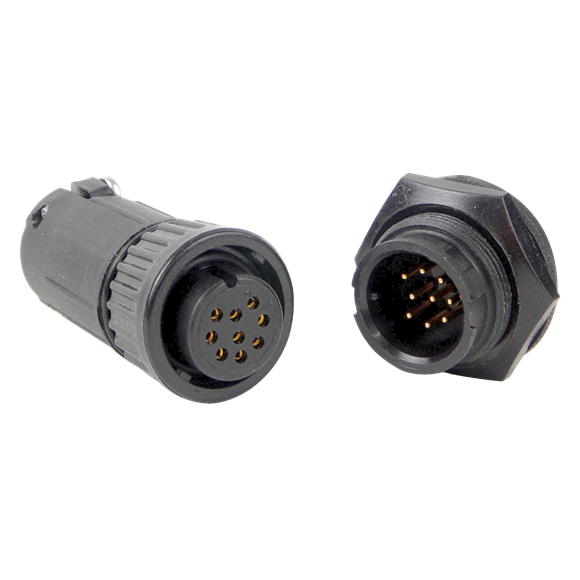

multi-con-x_group
Enlarge
multi-con-x_group

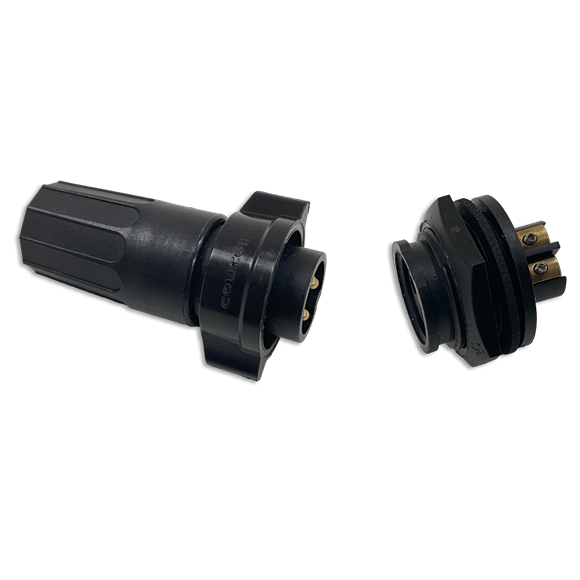

  • Screw-Terminals-Group
  • multi-con-x_group

  • Screw-Terminals-Group
  • multi-con-x_group

Multi-Con-X Overview Video

Mixed Signal/Power Contact Multi-Con-X Video

Cable Assembly Video

loading

Multi-Con-X Overview Video

Mixed Signal/Power Contact Multi-Con-X Video

Cable Assembly Video

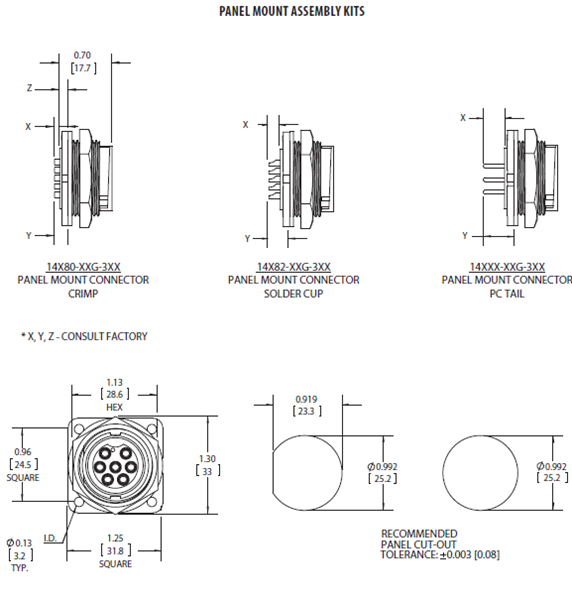

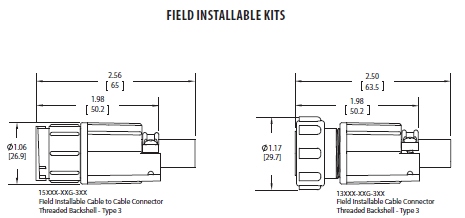

MaxiConX_Dimensions_1MaxiConX_Dimensions_2

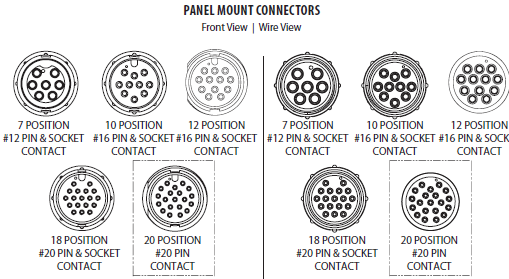

MaxiConX_Contact_Configurations

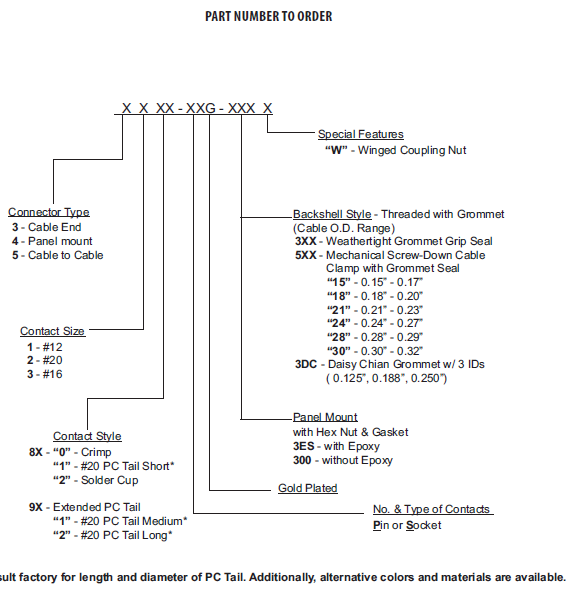

code_logic_multi_con

Available Products
