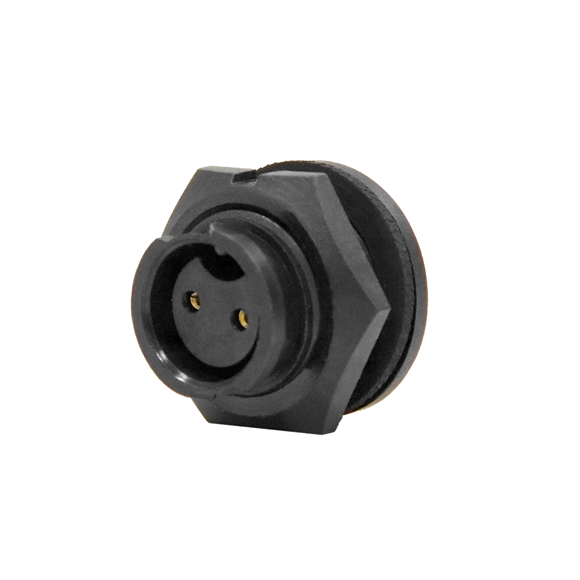

7281-2SG-3ES

Configuration

• Number of Conductors: 2
• Product Line: Mini-Con-X
• Mounting Type: Panel
• Gender: Female
• Contact Size: 20 AWG
• Termination Style: PC Mount
• Contact Plating: Gold
• Epoxy: With Epoxy
• Color: Black
• Locking: Locking
• Sealed: Sealed
• Insert Material: Thermoplastic
• Packaging Type: Bulk
• PC Contact Size: Short
• PC Mount Style: Thru-Hole

Electrical

• Insulation Resistance: 100000 MOhms
• Voltage Rating: 600 Volts
• Current Rating: 7.5 Amps

Mechanical

• Life Cycle: 300 Cycles
• Coupling Locking Style: Bayonet
• Mounting Torque: 10 in-lbs

Environmental

• Temperature Range: -40?C to +85?C
• Shielding: Unshielded
• Flame Rating: UL 94-HB
• Salt Spray: 300 Hr salt spray when mated
• Minimum Temperature: -40 C
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Conxall
• IP Rating: IP67
• IP65: 1
• IP66: 1
• IP67: 1
• IP69K: 1
• Current Interruption: Not for Current Interruption

Dimensional

• Outer Diameter: 0.71 in

Material

• Body Material: Thermoplastic
• Contact Material: Copper Alloy
• Contact Plating Type: Gold
• Insert Material Type: Standard
• O-Ring Material: Elastomer
