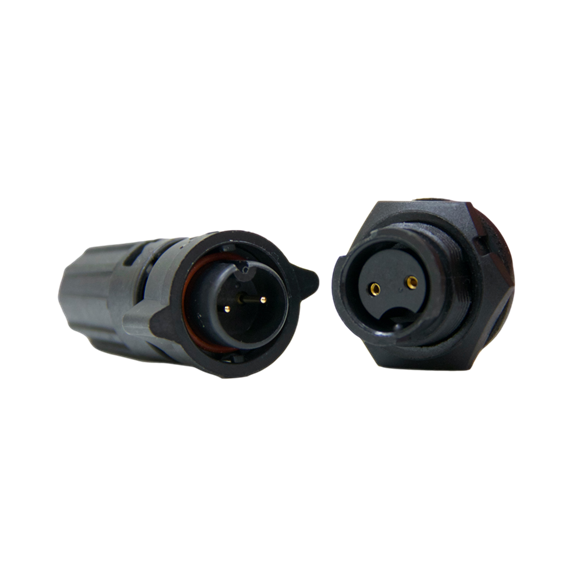

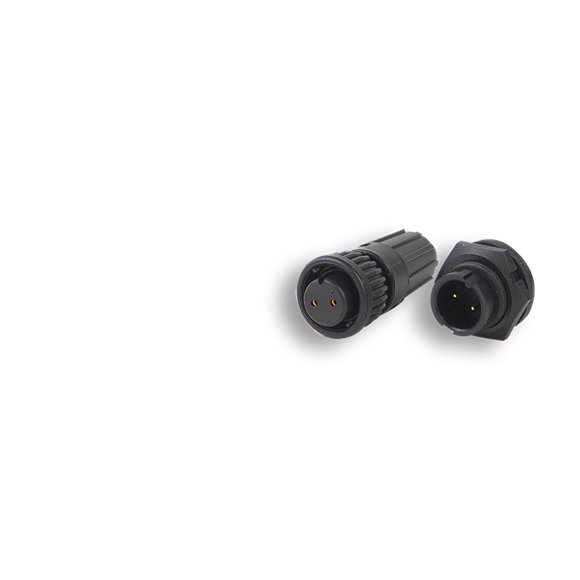

Mini-Con-X Connectors 0.71" OD
The Mini-Con-X from Conxall has set the standard for harsh environment connectors, and the new Insta-Click product line adds several key improvements for even harsher environment. An all-new latching mechanism provides an automatic positive lock while improving the water resistance rating to IP68 (when used as part of a molded cable assembly). A high quality new plastic offers UV resistance.
Key Features
![](/assets/1/6/icon3.jpg)
![icon_IP69k_blue](/assets/1/6/MainFCKEditorDimension/icon_IP69k_blue.png)
The Con-X series is sealed to IP67/IP69K for harsh environments when used with a molded cable assembly
![](/assets/1/6/icon3.jpg)
![icon_600V_blue](/assets/1/6/MainFCKEditorDimension/icon_600V_blue.png)
600V voltage rating makes it an ideal solution for power or signal
![](/assets/1/6/icon3.jpg)
![icon_madeinUSA_blue](/assets/1/6/MainFCKEditorDimension/icon_madeinUSA_blue.png)
Made in USA to the high standards that have made Conxall the leading name in harsh environment connectors
Configuration
-
Product Line:
Mini-Con-X
-
Contact Plating:
Gold
-
Insert Material:
Standard
F1 Rated UV Resistance
-
Packaging Type:
Bulk
-
Special Feature:
Mixed Contact Size
Mechanical
-
Coupling Locking Style:
Bayonet
Insta-Click Positive Lock
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Conxall
-
IP Rating:
IP67
IP68
IP66
IP69K
-
IP65:
1
-
IP66:
1
-
IP67:
1

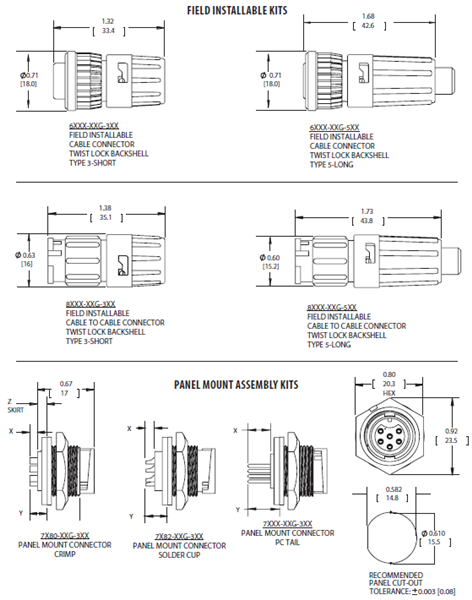

Dimensional
-
Diameter:
0.71 in
-
Outer Diameter:
18.2 in
Enlarge
![MiniConX_Dimensions_1](/assets/1/6/MainFCKEditorDimension/MiniConX_Dimensions_1.png)
