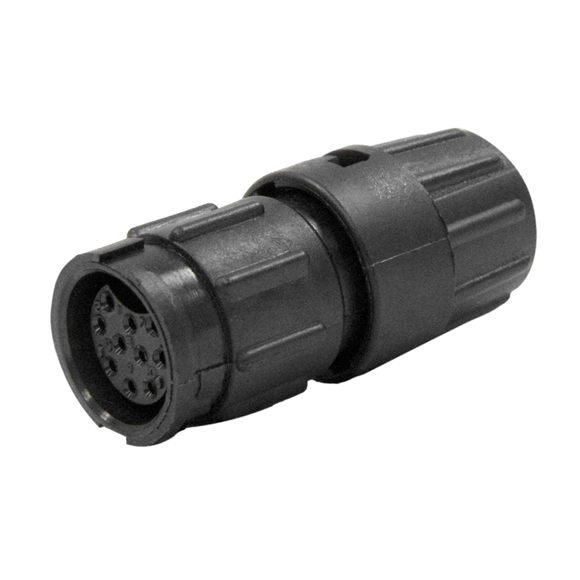

Mini-Con-X Cable-to-Cable, 10-pin #22, Female, Crimp, Bulk
Enlarge
There are no alternate images available for this product.
8880-10SG-315
Mini-Con-X Cable-to-Cable, 10-pin #22, Female, Crimp, Bulk
Out of stock
Buy Now
View More From This Family
Specifications
Videos
Documents
Configuration
Number of Conductors:
10
Product Line:
Mini-Con-X
Mounting Type:
In-Line
Gender:
Female
Contact Size:
22 AWG
Termination Style:
Crimp
Contact Plating:
Gold
Color:
Black
Locking:
Locking
Sealed:
Sealed
Handle Material:
Thermoplastic
Insert Material:
Thermoplastic
Packaging Type:
Bulk
Backshell Style:
Short
Winged Coupling Ring:
Not Winged
Electrical
Insulation Resistance:
100000 MOhms
Voltage Rating:
300 Volts
Current Rating:
3 Amps
Mechanical
Life Cycle:
300 Cycles
Coupling Locking Style:
Bayonet
Mounting Torque:
10 in-lbs
Environmental
Temperature Range:
-40?C to +85?C
Shielding:
Unshielded
Flame Rating:
UL 94-HB
Salt Spray:
300 Hr salt spray when mated
Minimum Temperature:
-40 C
Maxiumum Temperature:
85 C
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Conxall
IP Rating:
IP67
IP65:
1
IP66:
1
IP67:
1
IP69K:
1
Current Interruption:
Not for Current Interruption
Dimensional
Outer Diameter:
0.71 in
Cable Opening:
0.17 in
Material
Body Material:
Thermoplastic
Contact Material:
Copper Alloy
Contact Plating Type:
Gold
Insert Material Type:
Standard
O-Ring Material:
Elastomer
