M18

Standard Panel Mounts
- 16 AWG, 105C, 600V, PVC Hook-up Wire
- EPTR "Santoprene" Insert
- Lead Length 12 In.
- Epoxy Filled

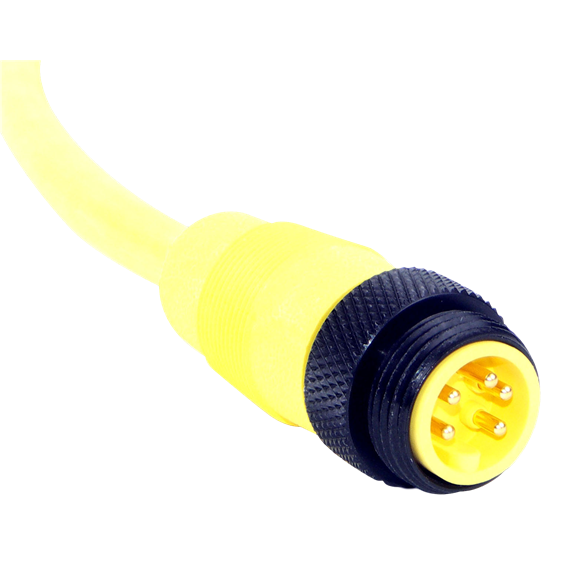

Standard Cable Assemblies
- 16 AWG, PVC Yellow Jacketed Cable
- Insert Material
    - Polyurethane ("A" Size)
    - PVC ("C" Size)
- PVC, Yellow Overmold
- Length 3, 6 and 12 Ft.
   Options
    - 16 AWG, Polyurethane Yellow Jacketed Cable
       For Polyurethane Cable add suffix "U"
    - 16 AWG, PVC & Polyurethane Yellow Jacketed Shielded Cable
       For Shielded Cable add suffix "S"
- Lengths other than standard
- DeviceNet Gray
  Add suffix "D1": Thin
  Add suffix "D2": Thick

Y-Splitter Assemblies
- 18 AWG, Polyurethane Yellow Jacketed Cable
- Polyurethane Insert
- Polyurethane Overmold

Tri Connector
- 18 AWG Hook-up Wires
- Polyurethane Insert
- Polyurethane Overmold
  Options
   - DeviceNet Gray
  Add suffix "D1": Thin
  Add suffix "D2": Thick

Dual Connector with Cable
- 18 AWG, Polyurethane Yellow Jacketed Cable
- Polyurethane Insert
- Polyurethane Overmold

Terminator
- Resistor 1/4 Watt 121 Ohm 1%
- Polyurethane Insert
- Polyurethane Overmold

LED Cordset
- 2 High Intensity (700-1,000 mcd) Extended Life Yellow LEDs
  (Typical life @ ambient temperature is 100,000 hours)
- 18 AWG, PVC Yellow Jacketed Cable
- PVC Insert
- PVC, Clear Overmold (LED Side Only)
   Options
    - 18 AWG, Polyurethane Yellow Jacketed Cable
    - Polyurethane, Clear Overmold (LED Side Only)

Electrical Rating
Voltage:
     600V (Non-LED Assembles)
     120V (LED Assemblies)

Cable Assemblies
Coupling Nut: Anodized Aluminum (Optional Nylon & Stainless Steel) Consult Factory
Contacts: Copper Alloy, Gold-plated
Insert:
   Polyurethane ("A" Size)
   PVC ("C" Size)
Molded Heads:  PVC or PUR per Cable Jacket Material
Cable: 16 AWG, PVC Insulated, Fine Stranded Copper Conductors,
   Yellow Oil Resistant PVC Jacketed,    600V, STO, 105C for
   Y-splitter & Dual Connector with Cable
   UL Recognized, CSA Certified

Panel Mount Assemblies
Shells: Anodized Aluminum (Optional Nylon & Stainless Steel) Consult Factory
Contacts: Copper Alloy, Gold-plated
Inserts:
   Ethylene Propylene
   Thermoplastic Rubber
   "Santoprene"
Wire: 16 AWG PVC Insulated, 600V,
   UL Recognized, CSA Certified

Environmental
Protection: NEMA 6P, IP67 & IP68
Operating Ambient: -20 to 80C

Certifications
CSA: CSA Certified  - File No. 181200

EMI/RFI Shielding
Meets or Exceeds IEC Directives:
   IEC 1000-4-2  EDS, 5KV to 15KV in 2.5KV Steps
   IEC 1000-4-3  RFI Immunity, 10V/m
   IEC 1000-4-4  Fast Transient, 2K
   IEC 1000-4-5  Surge, DC Immunity, 3.1KV
   EN50141  Induced RF Immunity, 10V/m
