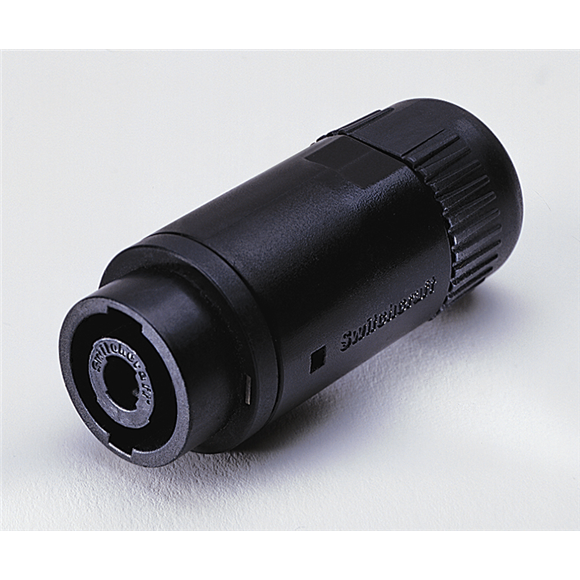

HPCI4F

Configuration

• Product Line: HPC Series
• Mounting Type: In-Line
• Mounting Feature: Rectangular
• Gender: Female
• Termination Style: Faston
• Contact Plating: Silver
• Color: Black
• Locking: Locking
• Handle Material: Thermoplastic
• Packaging Type: Bulk
• Standard Connector Type: Speakon-style
• Special Feature: .25" Faston

Electrical

• Contact Resistance: 0.01 Ohms
• Insulation Resistance: 2000 MOhms
• Voltage Rating: 1500 Volts
• Current Rating: 30 Amps

Mechanical

• Life Cycle: 1000 Cycles
• Coupling Locking Style: Button Latch

Environmental

• Flame Rating: UL 94V-0
• Moisture Resistance: MIL-STD-202 Method 106
• Salt Spray: MIL-STD-202 Method 101D Test Cond B
• Mechanical Shock: MIL-STD-202 Method 213B Test Cond K
• Vibration: MIL-STD-202 Method 201A
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Dimensional

• Cable Opening: 0.56 in

Material

• Contact Material: Copper Alloy
