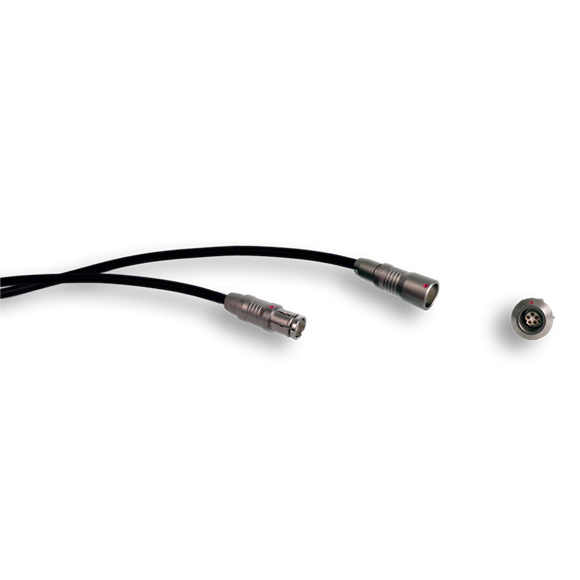

HS Series Dura-Pull Push-Pull Connectors
Extremely durable, sealed push-pull connectors, made by Switchcraft in the USA. Dura-Pull Connectors are made from nickel plated brass with a medical technology grade plastic insulator and gold plated contacts. They are sealed to IP68 and IP69K autoclaveable, and rated for at least 5,000 insertion/ withdrawal cycles. Although they are less than 1/2" in diameter, they can be ordered with up to 9 contacts. (2 thru 5 #20 contacts or 6 thru 9 #26 contacts) Their unique contacts can be either soldered or crimped for maximum flexibility and easy installation. Factory assembled cables are also available.
Key Features
The built in Push-Pull locking mechanism is easy to operate while eliminating accidental disconnection
They are sealed to IP68 and IP69K autoclaveable, and rated for at least 5,000 insertion/ withdrawal cycles
The HS2 Series is made in the USA to the highest quality standards with premium materials
Configuration
-
Product Line:
Dura-Pull
-
Contact Plating:
Gold
-
Color:
Nickel
-
Locking:
Locking
-
Sealed:
Sealed
-
Insert Material:
Medical Technology LCP
Mechanical
-
Coupling Locking Style:
Push-Pull
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
-
IP Rating:
IP67
IP68
IP69K
-
IP65:
1
-
IP66:
1
-
IP67:
1
-
IP68:
1
-
IP69K:
1
Dimensional
