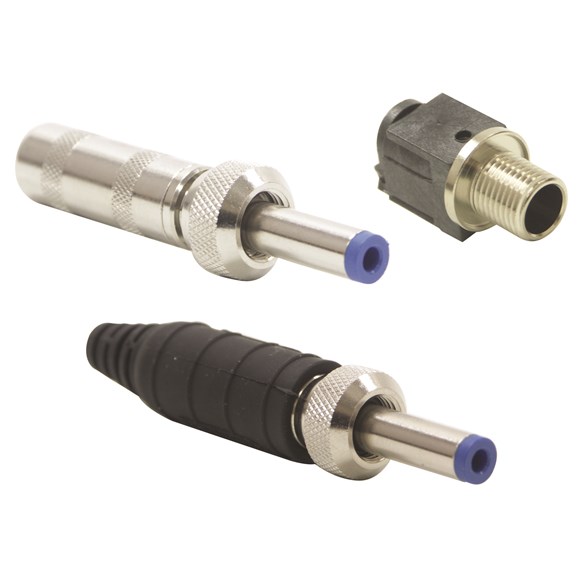

High Amperage Power Jacks & Plugs
High current, Sealed or Non-Sealed Power Jacks & Plugs are available in locking or non-locking versions. Automatic switch over from AC to DC permitted by sleeve shunt spring. Up to 11A current rating (carry).
Key Features
![](/assets/1/6/icon3.jpg)
![icon_lock_blue](/assets/1/6/MainFCKEditorDimension/icon_lock_blue.png)
High Amperage DC Power jacks and plugs are available in locking and non-locking versions
![](/assets/1/6/icon3.jpg)
![icon_11amps_blue](/assets/1/6/MainFCKEditorDimension/icon_11amps_blue.png)
The current rating for the High Amperage series is up to 11A
![](/assets/1/6/icon3.jpg)
![icon_madeinUSA_blue](/assets/1/6/MainFCKEditorDimension/icon_madeinUSA_blue.png)
As the quality leader and only US manufacturer of DC power jacks, Switchcraft builds products to last
Configuration
-
Number of Conductors:
2
-
Product Line:
High Amperage
-
Color:
Blue
-
High Current:
1
-
Locking:
Locking
-
Sealed:
Sealed
-
Packaging Type:
Bulk
-
Shunt:
1
-
Center Pin Size:
2 mm
Electrical
-
Contact Resistance:
0.015 Ohms
-
Insulation Resistance:
1000 MOhms
-
Voltage Rating:
24 Volts
-
Current Rating:
11 Amps
Mechanical
-
Life Cycle:
5000 Cycles
-
Operating Force:
5 lbs
-
Coupling Locking Style:
Threaded
-
Mounting Torque:
10 in-lbs
Environmental
-
Temperature Range:
-40C to +105C
-
Vibration:
Mil-Std 202G Method 201A
-
Maxiumum Temperature:
105 C
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
1
-
Brand:
Switchcraft
-
Touch Proof:
1
-
IP Rating:
IP68
-
IP66:
1
-
IP67:
1
-
IP68:
1

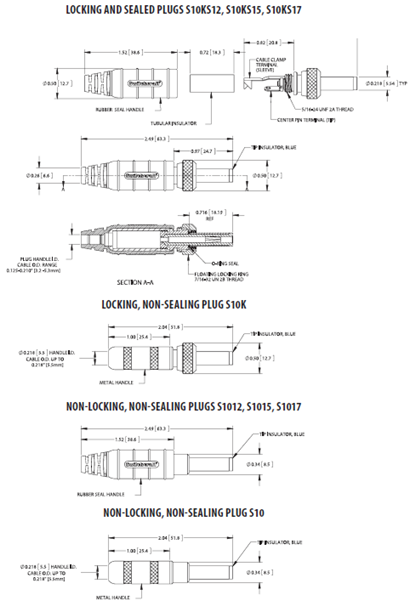

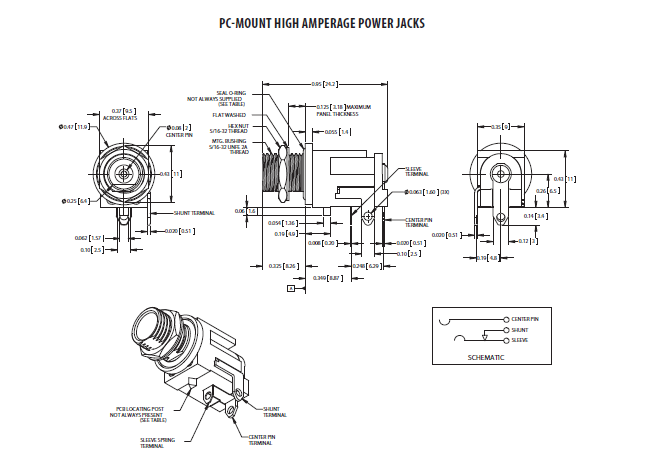

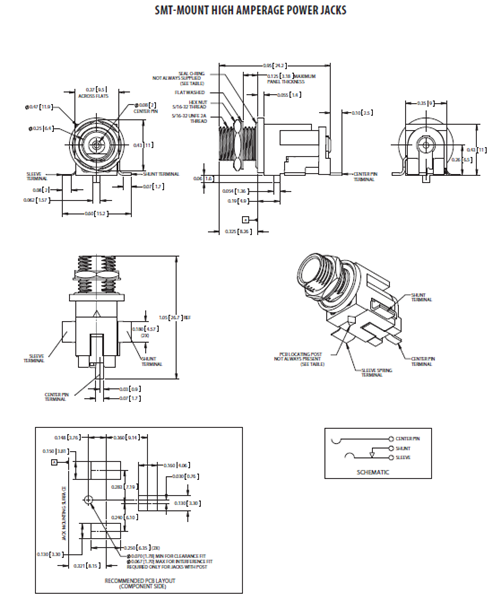

Dimensional
Material
-
Contact Material:
Copper Alloy
-
Terminal Material:
Copper Alloy
-
O-Ring Material:
Elastomer
Enlarge
- There are no alternate images available for this product.

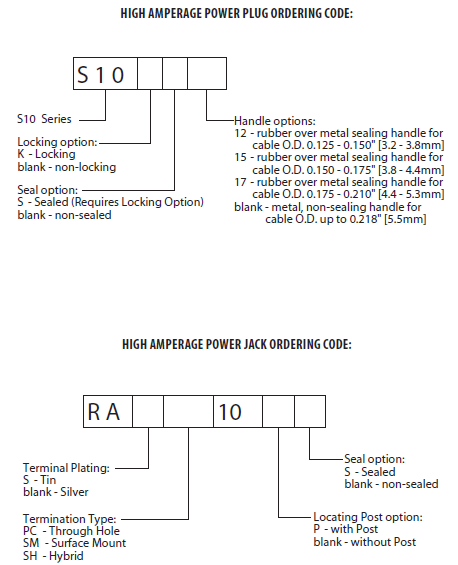

![High_Amperage_Code_Logic](/assets/1/6/High_Amperage_Code_Logic.png)
