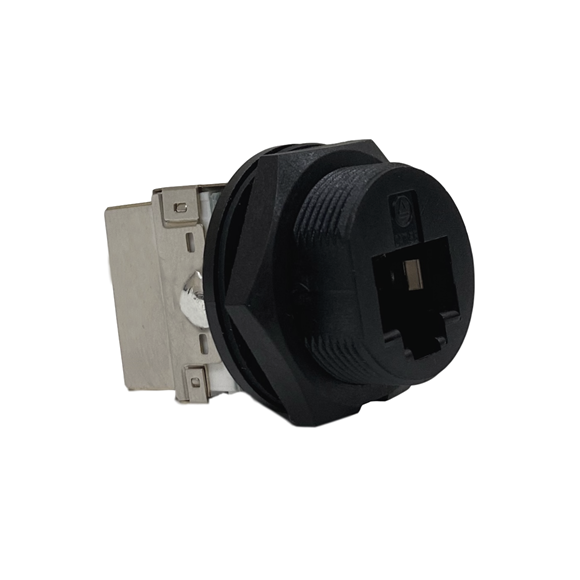

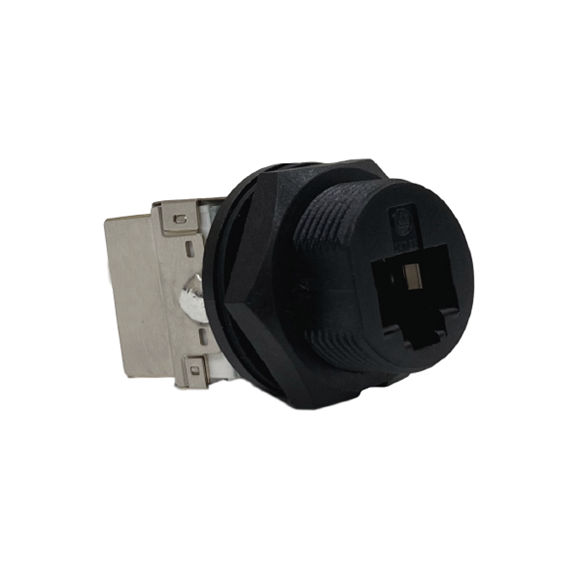

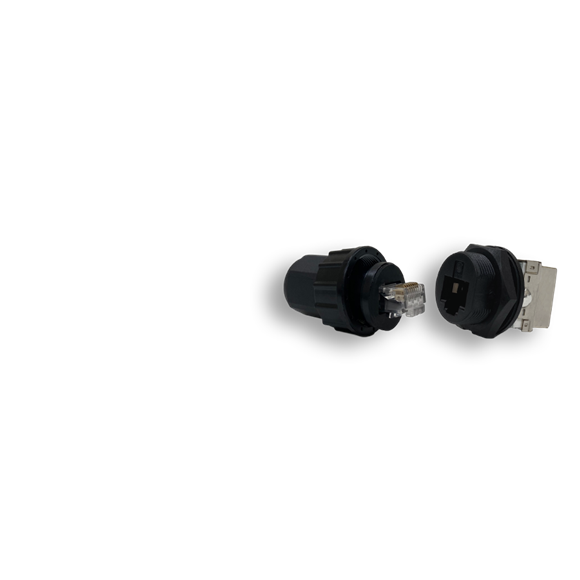

END Series Sealed RJ45 Connectors
High quality, compact IP67 sealed RJ45 connectors, suitable for any application requiring a high quality, waterproof RJ45.
Key Features
END series connectors are sealed to IP67 when mated or using the optional screw-on cap
Plugs and receptacles meet or exceed CAT6 specifications for high speed data applications (ENDP5EF Feedthrough rated CAT5E)
The END series has a rugged design build to withstand harsh environments
The new END series from Switchcraft offers reliable, harsh environment performance in a smaller package. Incorporating an RJ45 connector into a sealed housing ensures the connectors are easy to terminate while still offering data performance up to CAT6. A variety of panel mount options, including a feedthrough are available. Panel mount receptacles are compatible with END series sealed plugs or any standard RJ45 connector, and are sealed to IP67 when mated or using the optional cap. Shielding is available with the optional shielded plug and the ENDP6SPC die-cast receptacles.
Configuration
-
Number of Conductors:
8
-
Product Line:
END Series
-
Locking:
Locking
-
Sealed:
Sealed
-
Packaging Type:
Bulk
-
Standard Connector Type:
RJ45
Mechanical
-
Coupling Locking Style:
Threaded
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
