EN3 Sealed Connectors, 0.715" OD, 2-18 Contacts
Utilizing an integral O-Ring/gasket, EN3 connectors are available in 2-18 pins/sockets in the same housing size, bayonet locking, cable end, cable-to-cable, panel mount,right angle panel mount, solder, pc, crimp contacts, caps, .Exceeds enclosure rating IP66/IP68/IP69K and NEMA 250 when mated or covered.
Key Features
The EN3 Series is sealed to IP68/IP69K for harsh environments when mated

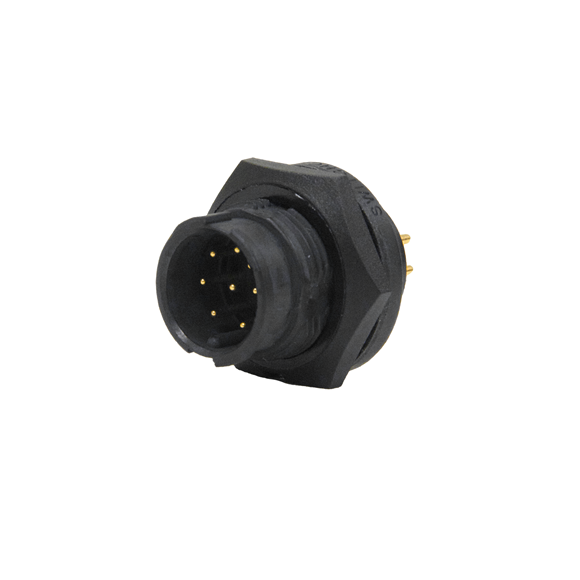

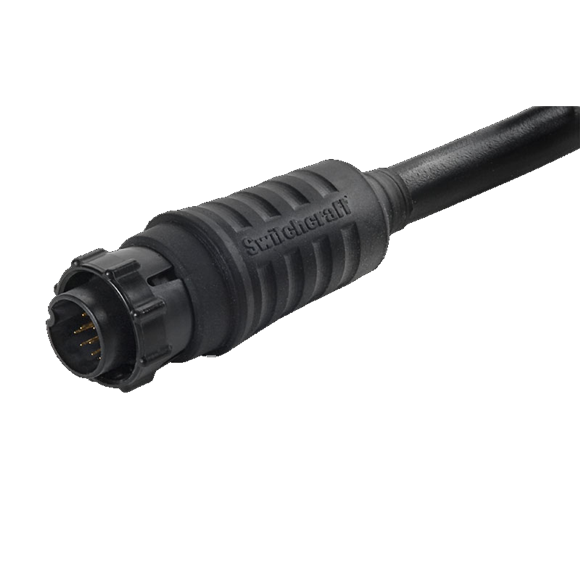

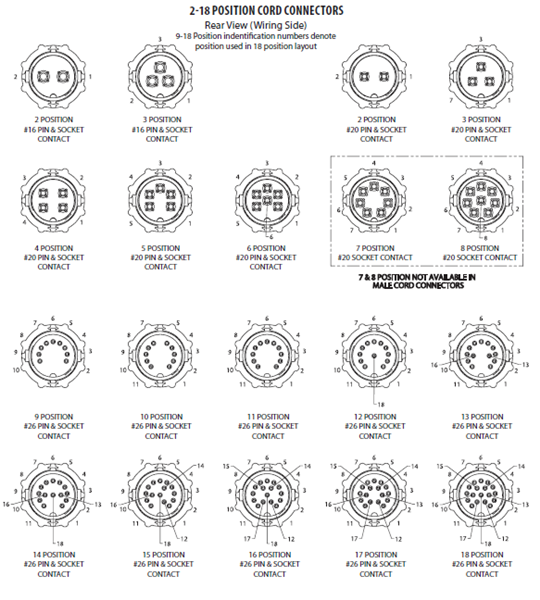

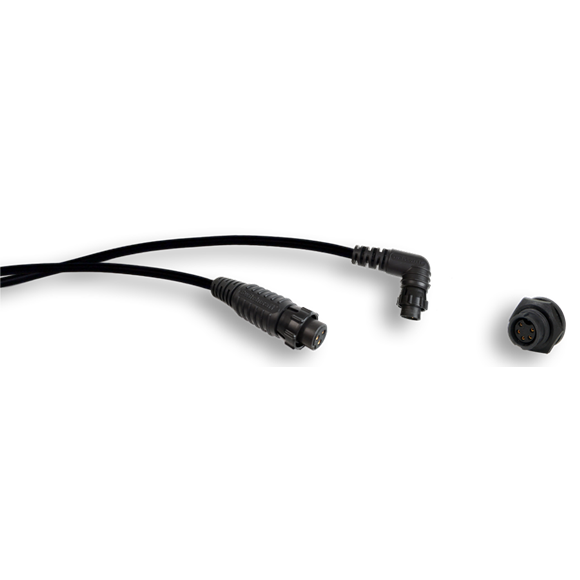

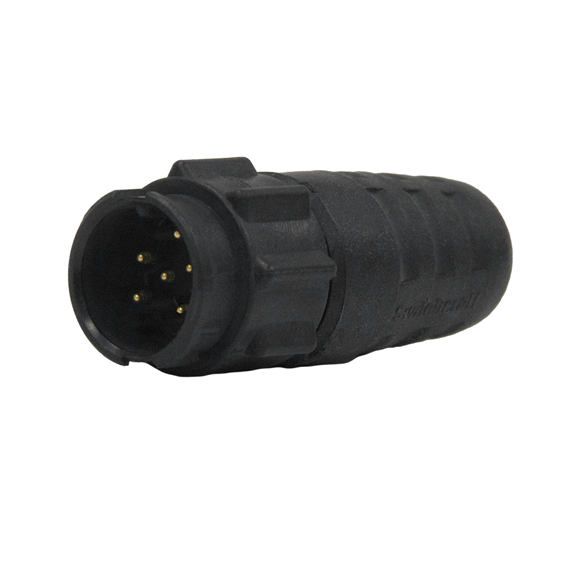

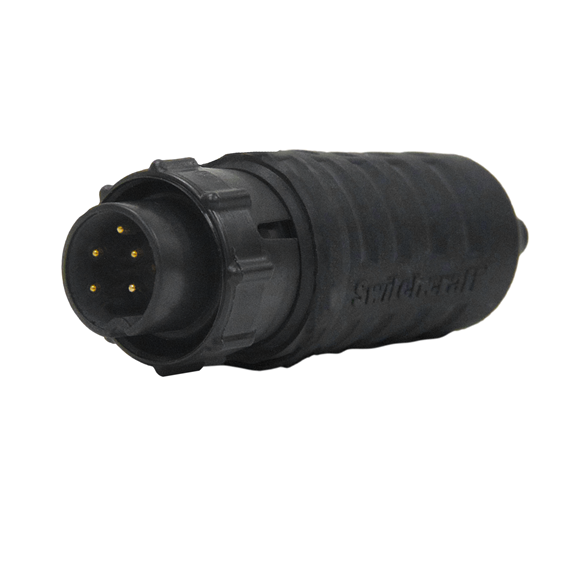

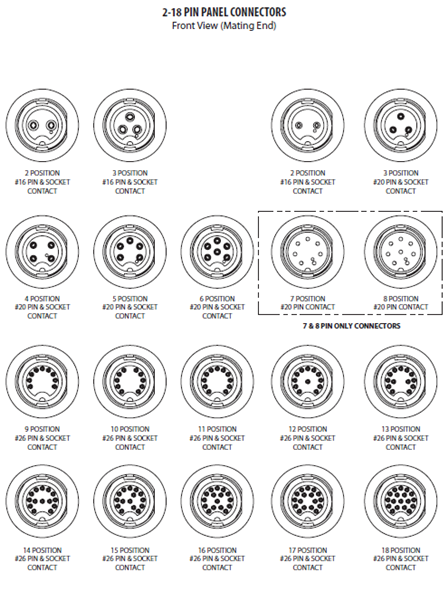

Available in 2-18 pins/sockets in the same housing size, bayonet locking, cable end, cable-to-cable, panel mount, right angle panel mount solder, right angle panel mount solder, pc, and crimp contacts
Made in USA to the high standards that have made Switchcraft the leading name in harsh environment connectors
Configuration
-
Product Line:
EN3
-
Contact Plating:
Gold
-
Color:
Black
-
Locking:
Locking
-
Insert Material:
F1 Rated UV Resistance
Electrical
-
Voltage Rating:
300 Volts
Mechanical
-
Coupling Locking Style:
Bayonet
Environmental
-
Temperature Range:
-40C to +65C
-
Shielding:
Unshielded
-
Moisture Resistance:
MIL-STD-202 Method 106F
-
Salt Spray:
MIL-STD-202 Method 101D Test Cond B
-
Minimum Temperature:
-40 C
-
Maxiumum Temperature:
65 C
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
-
IP Rating:
IP67
IP68
IP69K
-
UV Rating:
F1
-
IP65:
1
-
IP66:
1
-
IP67:
1
-
IP68:
1
-
IP69K:
1

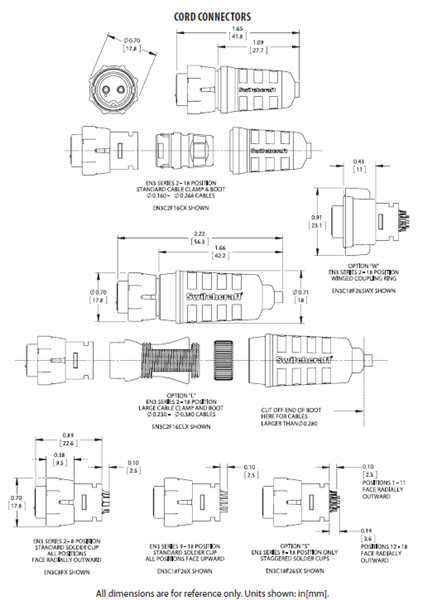

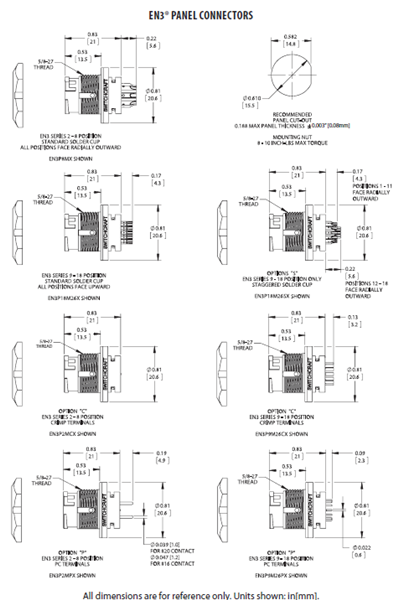

Dimensional
-
Diameter:
0.71 in
-
Outer Diameter:
0.715 in
