Switchcraft Conxall

E3MRA

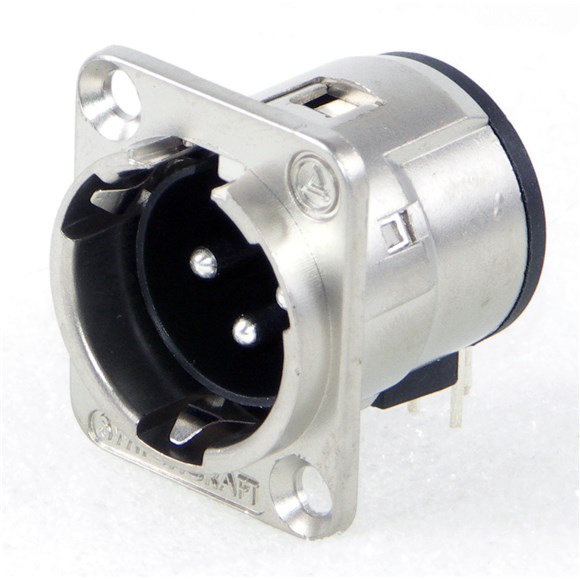

E Series 3 Pin XLR Male, Right Angle PC Contacts, Silver Pins/Nickel Finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: QG
  • Mounting Type: Panel
  • Mounting Feature: Universal Mount
  • Gender: Male
  • Contact Size: 14 AWG
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: XLR
  • PC Mount Style: Thru-Hole
  • Special Feature: Quick Release Inserts

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 2.00E+06 MOhms
  • Current Rating: 15 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 7 lbs
  • Coupling Locking Style: Button Latch

Environmental

  • Humidity Rating: MIL-STD-202F Method 106E
  • Salt Spray: MIL-STD-202F Method 101D
  • Mechanical Shock: MIL-STD-202F Method 107D
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Insert Material Type: Glass-filled Thermoplastic
