Switchcraft

HS2L5M20C

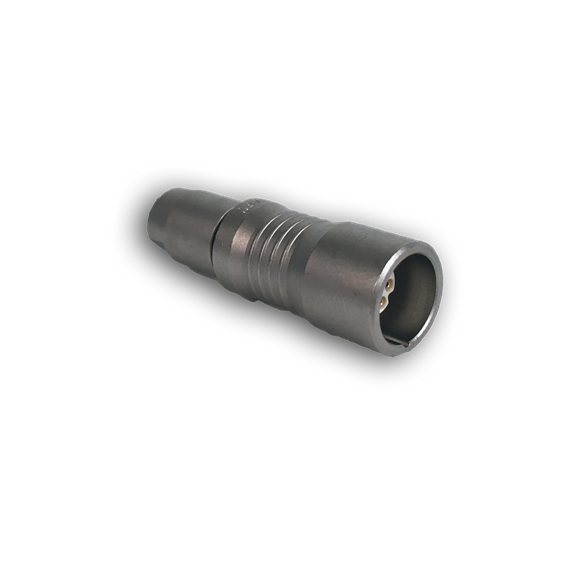

Dura-Pull Push Pull Connector, Cable-to-Cable, 5 position, Male, Cable Size C

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 5
  • Product Line: Dura-Pull
  • Mounting Type: In-Line
  • Gender: Male
  • Contact Size: 20 AWG
  • Termination Style: Solder/Crimp
  • Contact Plating: Gold
  • Color: Nickel
  • Locking: Locking
  • Sealed: Sealed
  • Handle Material: Brass
  • Insert Material: Medical Technology LCP
  • Packaging Type: Bulk
  • Backshell Style: Standard

Electrical

  • Contact Resistance: 0.01 Ohms
  • Insulation Resistance: 100000 MOhms
  • Voltage Rating: 125 Volts
  • Current Rating: 8 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 10 lbs
  • Coupling Locking Style: Push-Pull

Environmental

  • Temperature Range: -40?C to +135?C
  • Shielding: Shielded
  • Flame Rating: UL94V-0
  • Moisture Resistance: MIL-STD-202G Method 106G
  • Salt Spray: MIL-STD-202G Method 101E Test Cond B
  • Vibration: Mil-Std 202G Method 201A
  • Minimum Temperature: -40 C
  • Maxiumum Temperature: 135 C

Compliance

  • RoHS Compliant: 1
  • CSA: 1
  • UL: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • IP Rating: IP68
  • UV Rating: F1
  • Thermal Shock: Mil-Std 202G method 107G
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • IP68: 1
  • IP69K: 1
  • Current Interruption: Not for Current Interruption

Dimensional

  • Outer Diameter: 0.47 in
  • Cable Opening: 0.216 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Electroless Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Gold
  • Insert Material Type: Medical Technology LCP
  • O-Ring Material: Silicone
  • Hardware Material: Copper Alloy, Nickel Plated
