Switchcraft

05GM5MX

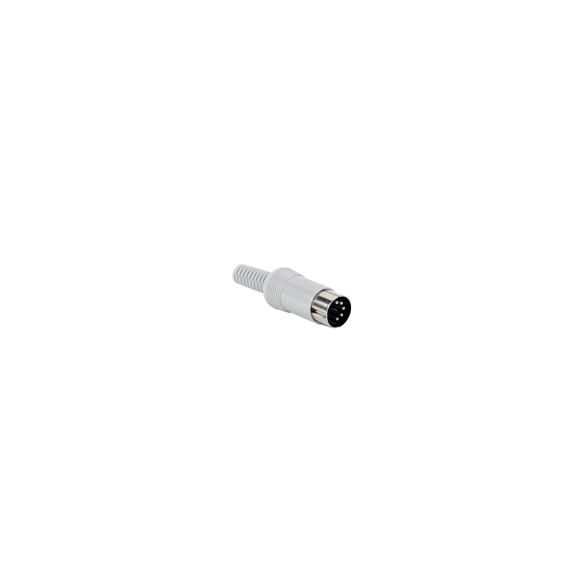

DIN Cable Mount Connector, male cord plug with shielded barrel, 5 pins at 180, Gray body and strain relief

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 5
  • Mounting Type: Cord
  • Gender: Male
  • Contact Size: 22 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Gray
  • Locking: Locking
  • Handle Material: Soft Plastic
  • Packaging Type: Bulk
  • Standard Connector Type: DIN

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 9 lbs
  • Coupling Locking Style: Metal Tab

Environmental

  • Shielding: Shielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.24 in
