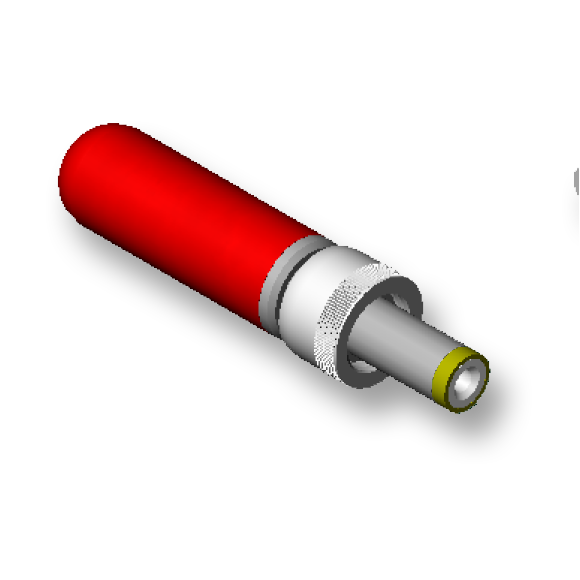

S766KH

Configuration

• Number of Conductors: 2
• Product Line: Power Jax
• Mounting Type: Cord
• Termination Style: Solder
• Contact Plating: Nickel
• Color: Red
• High Temperature: High Temperature
• High Current: Standard Current
• Locking: Locking
• Sealed: Not Sealed
• Handle Material: Thermoplastic
• Packaging Type: Bulk
• Standard Connector Type: DC Barrel Connectors
• Jack-Plug Type: Plug
• Special Feature: Extended Length
• Center Pin Size: 2 mm

Electrical

• Contact Resistance: 0.01 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 1000 MOhms
• Voltage Rating: 24 Volts
• Current Rating: 7.5 Amps

Mechanical

• Life Cycle: 5000 Cycles
• Operating Force: 3 lbs
• Coupling Locking Style: Threaded

Environmental

• Temperature Range: -40?C to +105?C
• Shielding: Unshielded
• Minimum Temperature: -40 C
• Maxiumum Temperature: 105 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Dimensional

• Inner Diameter: 0.08 in
• Cable Opening: 0.218 in

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Contact Plating Type: Nickel
• Terminal Material: Copper Alloy
• Sleeve Material: Copper Alloy
