Switchcraft Conxall

D4M

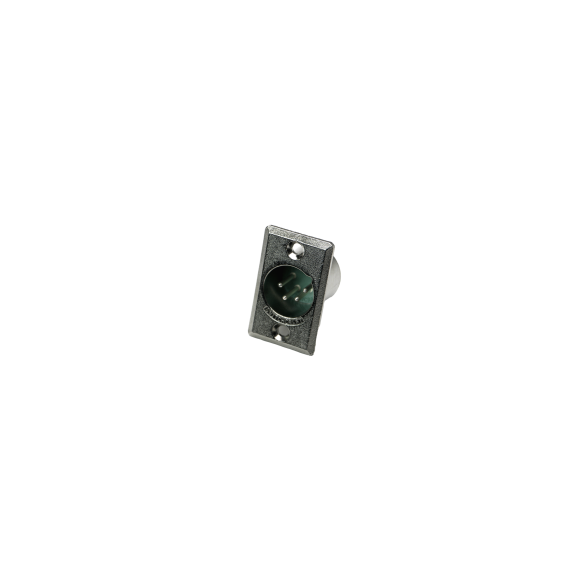

D Series 4 Pin XLR Male - Silver Pins / Nickel Finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Product Line: QG
  • Mounting Type: Panel
  • Mounting Feature: Narrow Flange
  • Gender: Male
  • Contact Size: 16 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: XLR

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 1000 MOhms
  • Current Rating: 15 Amps

Mechanical

  • Operating Force: 7 lbs
  • Coupling Locking Style: Button Latch

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Insert Material Type: Molded Thermoplastic
