BKZ Series DC Power Jacks and Plugs

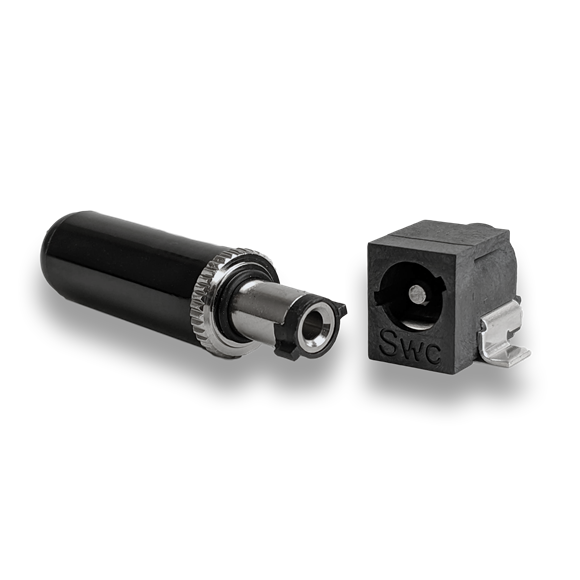

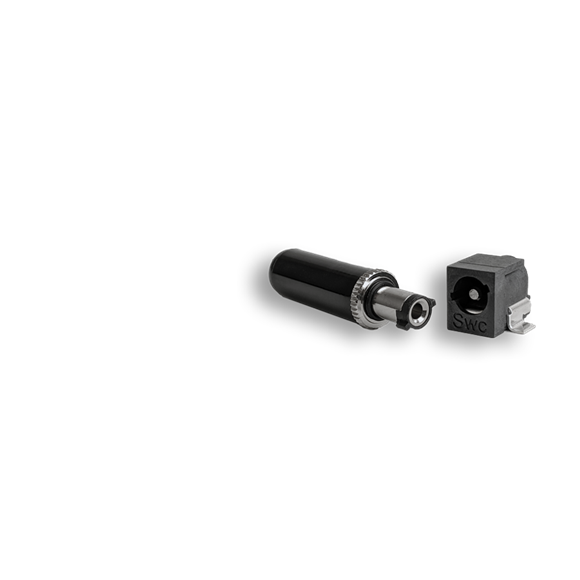

RIGHT ANGLE PCB MOUNT JACKS THAT LOCK! The new BKZ series from Switchcraft solves one of the largest issues with typical DC barrel connectors: accidental disconnect. Wings on the BKZ series plugs fit into a slot in BKZ series jacks. Once locked, the plug cannot be disconnected without twisting to unlock, ensuring continuous power to your critical electronic device.
Key Features
The user can clearly feel when the plug is fully locked and unlocked, ensuring easy and intuitive operation
Right Angle PC, Right Angle Surface Mount, and Right Angle Hybrid mounting style are available in 2 pin sizes
As the quality leader and only US manufacturer of DC power jacks, Switchcraft builds products to last
SPECIFICATIONS:
Materials:
Housing: Thermoplastic
Terminals:
Sleeve: Tin plated copper alloy
Tip: Nickel plated, copper alloy
ELECTRICAL:
Current Rating: 5A
Contact Resistance: <50 mohms
Insulation Resistance: 100 mohms min.
(RAPC700, RASH700, RASM700: 30 megohms @ 100V DC)
Dielectric Withstanding Voltage: 250 VAC @ 1 minute
MECHANICAL:
Lifecycles: 5,000 min.
Note: Some available with P locating post as an option, contact factory for details
Note: Available with Hi-temp material, contact factor for details
Configuration
-
Number of Conductors:
2
-
Product Line:
BKZ Series
-
Locking:
Locking
-
Sealed:
Not Sealed
-
Packaging Type:
Bulk
-
Standard Connector Type:
DC Barrel Connectors
Electrical
-
Contact Resistance:
0.05 Ohms
-
Dielectric Withstanding Voltage:
250 Volts
-
Insulation Resistance:
100 MOhms
-
Voltage Rating:
24 Volts
-
Current Rating:
5 Amps
Mechanical
-
Life Cycle:
5000 Cycles
-
Coupling Locking Style:
Bayonet
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Material
-
Terminal Material:
Copper Alloy
-
Sleeve Material:
Copper Alloy
