Home>Browse by Category>Connectors>General Connectors>XLR Connectors>B Series Circular Panel Mount w/nut, 3 Pin XLR Male - Silver Pins / Black Finish

b3mb
Enlarge
b3mb
  • There are no alternate images available for this product.

  •
Switchcraft Conxall

B3MB

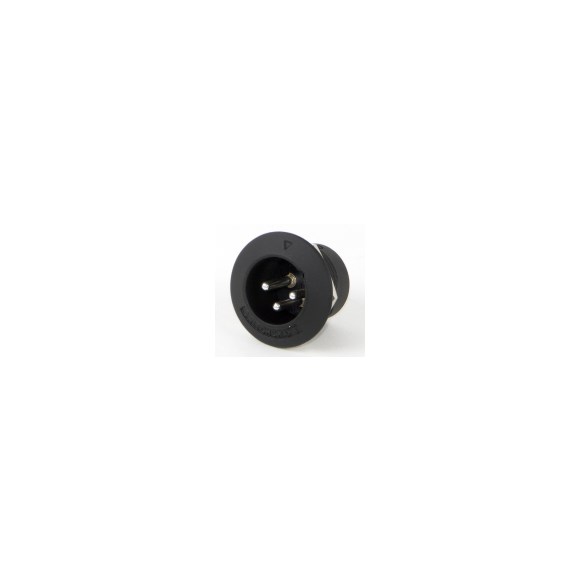

B Series Circular Panel Mount w/nut, 3 Pin XLR Male - Silver Pins / Black Finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: QG
  • Mounting Type: Panel
  • Mounting Feature: Mounting Nut
  • Gender: Male
  • Contact Size: 14 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Black
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: XLR

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 1000 MOhms
  • Current Rating: 15 Amps

Mechanical

  • Operating Force: 7 lbs
  • Coupling Locking Style: Button Latch

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Insert Material Type: Molded Thermoplastic
