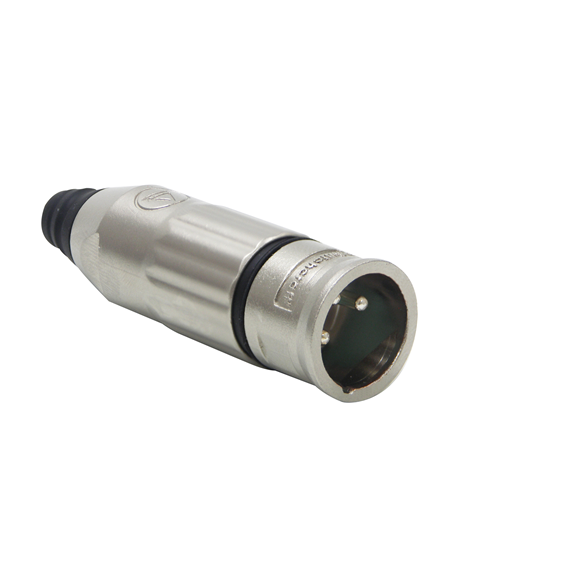

sealed_xlr_inline_product
Enlarge
sealed_xlr_inline_product
  • There are no alternate images available for this product.

  •
Switchcraft

AAA4MPZH

AAA Series, 4 contacts, Male, Plastic Handle, Nickel Finish, Silver Contact Plating, 0.135"[3.4mm] Cable Strain Relief Size, Sealed XLR Cable-to-Cable Connector

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Product Line: QG
  • Mounting Type: Cord
  • Gender: Male
  • Contact Size: 16 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: XLR

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 125 Volts
  • Current Rating: 15 Amps

Mechanical

  • Life Cycle: 1000 Cycles
  • Operating Force: 8 lbs
  • Coupling Locking Style: Button Latch

Environmental

  • Moisture Resistance: MIL-STD-202G Method 106G
  • Salt Spray: MIL-STD-202G Method 101E Test Cond B
  • Mechanical Shock: MIL-STD-202G Method 107G
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP66: 1

Dimensional

  • Cable Opening: 0.29 in

Material

  • Contact Plating Type: Silver
  • Insert Material Type: Thermoplastic
  • Terminal Material: Copper Alloy Tin-Plated
  • Spring Material: Copper Alloy Tin-Plated
