AAA3MBZ

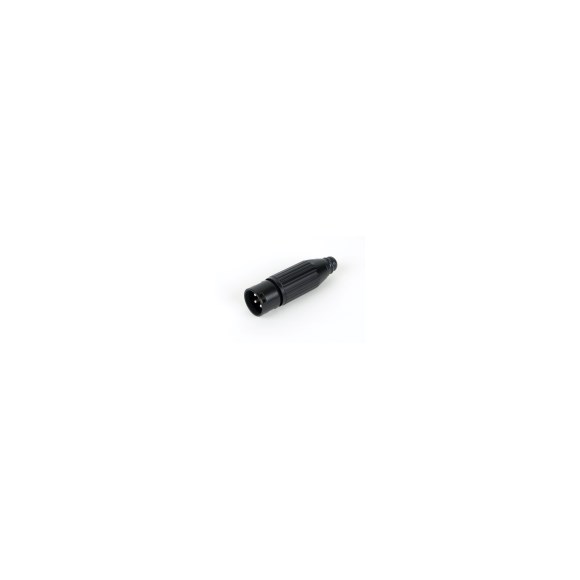

AAA Series 3 Pin XLR Male Cable Mount, Silver Pins / Black Metal

In stock

Drawings:

Buy Now

View More From This Family

Specifications
Videos
Documents

Configuration

Number of Conductors: 3
Product Line: QG
Mounting Type: Cord
Mounting Feature: Chuck-Style Strain Relief
Gender: Male
Contact Size: 14 AWG
Termination Style: Solder Cup
Contact Plating: Silver
Color: Black
Locking: Locking
Handle Material: Zinc
Packaging Type: Bulk
Standard Connector Type: XLR

Electrical

Contact Resistance: 0.05 Ohms
Dielectric Withstanding Voltage: 1000 Volts
Insulation Resistance: 1000 MOhms
Current Rating: 15 Amps

Mechanical

Operating Force: 7 lbs
Coupling Locking Style: Button Latch

Environmental

Shielding: Shielded

Compliance

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft

Dimensional

Cable Opening: 0.22 in

Material

Contact Material: Copper Alloy
Contact Plating Type: Silver
Insert Material Type: Molded Thermoplastic
