R3FZ

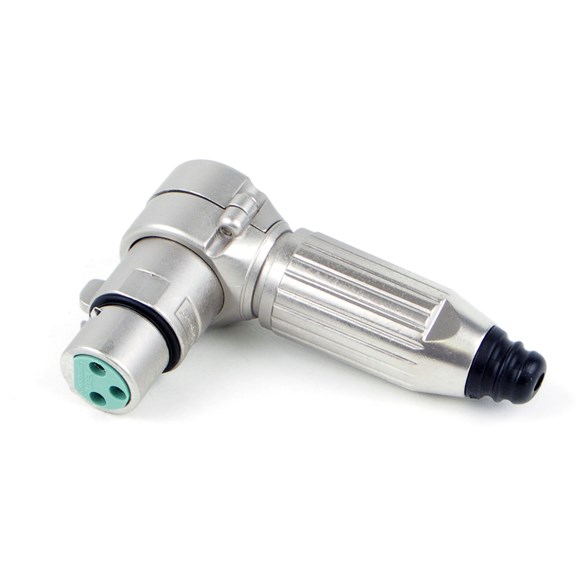

AAA Series 3 Pin Female Right Angle Cable Mount XLR, Silver Pins, Nickel Body

In stock

Drawings:

Buy Now

View More From This Family

Specifications
Videos
Documents

Configuration

Number of Conductors: 3
Product Line: QG
Mounting Type: Right Angle Cord
Mounting Feature: Chuck-Style Strain Relief
Gender: Female
Contact Size: 14 AWG
Termination Style: Solder Cup
Contact Plating: Silver
Color: Nickel
Locking: Locking
Handle Material: Zinc
Packaging Type: Bulk
Standard Connector Type: XLR

Electrical

Current Rating: 15 Amps

Mechanical

Coupling Locking Style: Button Latch

Environmental

Shielding: Shielded

Compliance

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft

Dimensional

Cable Opening: 3.2 in

Material

Contact Plating Type: Silver
