Switchcraft

C55BX

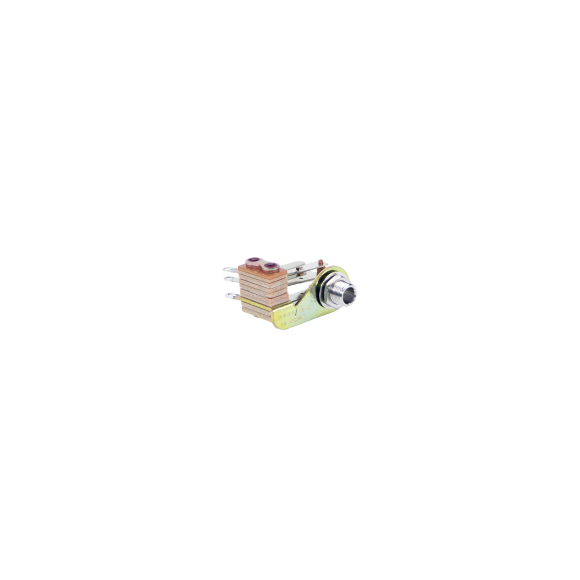

3 Conductor, short frame right angle jack with MIL-type insulation and finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Mounting Feature: Right Angle
  • Termination Style: Solder
  • Contact Plating: Silver
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: MIL-Type Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.03 Ohms
  • Insulation Resistance: 10000 MOhms
  • Voltage Rating: 125 Volts
  • Current Rating: 1 Amps
  • Circuit-Schematic: Isolated Break Circuit, Sleeve Common

Mechanical

  • Life Cycle: 10000 Cycles
  • Panel Thickness: 0.156 in

Environmental

  • Temperature Range: -55C to +85C
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 213 Test Cond H
  • Vibration: MIL-STD-202 Method 213
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Insert Material Type: Thermoplastic
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
