Switchcraft

35LJN

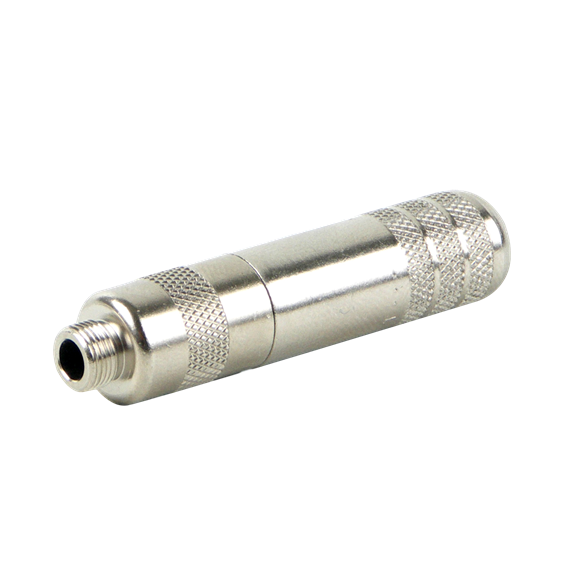

3.5MM Stereo Cable Mount Extension Jack - Nickel Body / Silver Contacts / .290" Opening

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Cord
  • Termination Style: Solder
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Not Sealed
  • Handle Material: Brass
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 2000 MOhms
  • Circuit-Schematic: Double Open

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 8 lbs
  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Shielded
  • Mechanical Shock: MIL-STD-202F Method 107G
  • Vibration: MIL-STD-202F Method 201

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.29 in

Material

  • Body Material: Brass
  • Body Plating: Nickel
  • Terminal Material: Copper Alloy
  • Spring Material: Beryllium Copper
