Switchcraft

35RAPC2AV

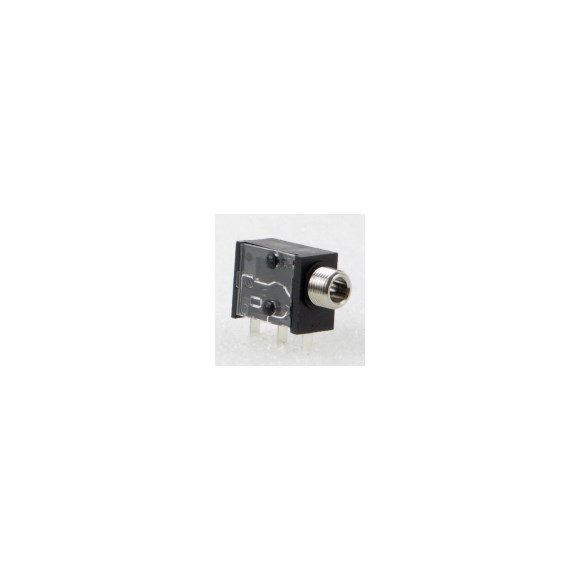

3.5MM PC vertical mount Jack, mono, threaded bushing

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Mounting Feature: Vertical Mount
  • Termination Style: PC Mount
  • Contact Plating: Silver
  • Color: Black
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 100 MOhms
  • Circuit-Schematic: Tip Shunt

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 3.5 lbs
  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Unshielded
  • Flame Rating: UL 94V-1

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Terminal Material: Copper Alloy Silver-Plated
  • Spring Material: Steel Wire
