35RAPC7JS
Enlarge
35RAPC7JS
  • There are no alternate images available for this product.

  •
Switchcraft

35RAPC7JS

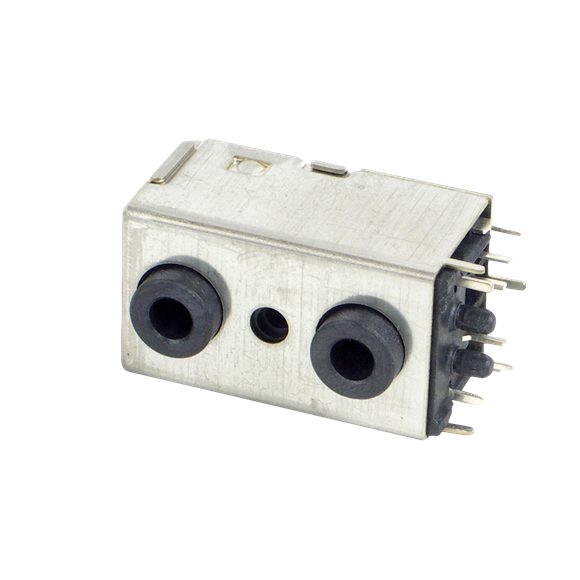

3.5MM Dual Stereo Jack, shielded

In stock
Drawings:


Buy Now

View More From This Family

FEATURES

3-conductor, miniature phone jack mates with 3.5 mm finger plugs

Saves board space...two jacks in a single vertical mount footprint.

Ideally suited for infra-red and convection oven soldering 235C (455F).

Board retention pins accommodate PC board thickness range of .050" to .080".

Single-screw panel mounting hole is standard.

EMI-RFI shield

Housing UL 94V-0 rated against flammability

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Termination Style: PC Mount
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Number of Stations: 2
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 100 MOhms
  • Circuit-Schematic: Open/Closed

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 6 lbs

Environmental

  • Shielding: Shielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Brass
  • Body Plating: Nickel
  • Terminal Material: Copper Alloy Silver-Plated
  • Spring Material: Copper Alloy
