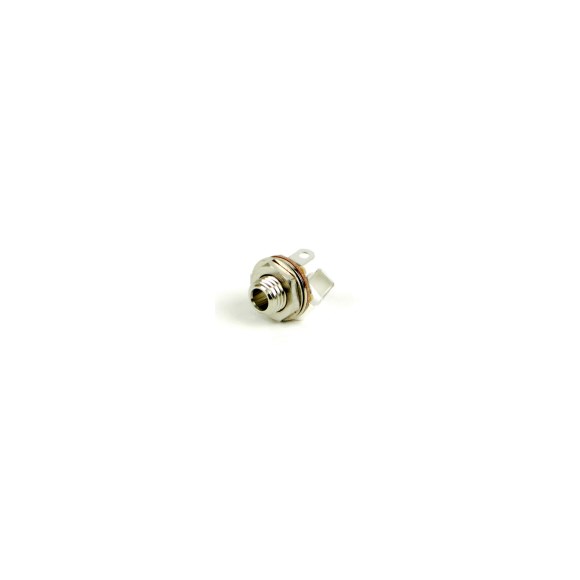

35pm1
Enlarge
35pm1
  • There are no alternate images available for this product.

  •
Switchcraft

35PM1

3.5MM (1/8" MINI)single mono Jack, Open circuit

In stock
Drawings:


Buy Now

View More From This Family

FEATURES

2-conductor phone jacks similar to Littel-Jax phone jacks, but smaller

For connecting in limited space

Mate with 3.5 mm phone plugs

Notched insulators interlock internal parts

Mounting hole: .250" diameter in panels up to .125" thick (mounting hardware supplied)

For insulated mount, order two washers separately, Number S1564 (swedged fiber washer .312" diameter mounting hole) and number S2207 (flat phenolic washer)

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Silver
  • Color: Nickel
  • Locking: Locking
  • Sealed: Not Sealed
  • Handle Material: Rigid Plastic Insulators
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.075 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 5000 MOhms
  • Current Rating: 0.25 Amps
  • Circuit-Schematic: Single Open

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Unshielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Terminal Material: Copper Alloy Tin-Plated
  • Spring Material: Copper Alloy
