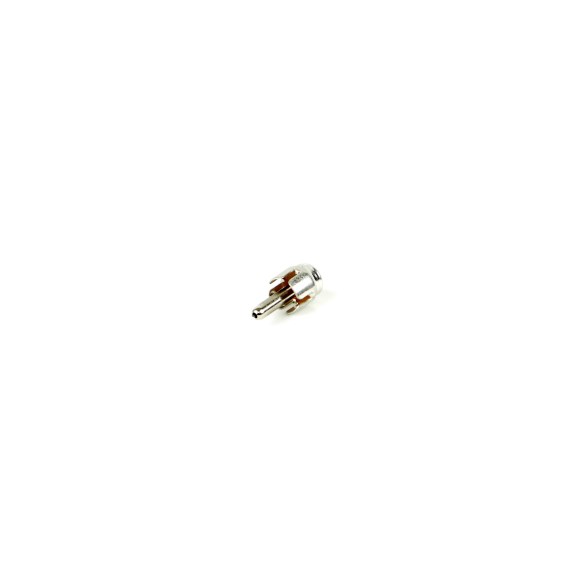

3501mx
Enlarge
3501mx
  • There are no alternate images available for this product.

  •
Switchcraft

3501MX

2 conductor RCA straight plug, cable up to 0.125" (3.18mm) diameter, no handle

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Mounting Type: Cord
  • Termination Style: Solder Cup
  • Contact Plating: Nickel
  • Color: No Handle
  • Sealed: Not Sealed
  • Handle Material: No Handle
  • Packaging Type: Bulk
  • Standard Connector Type: RCA
  • Jack-Plug Type: Plug

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 250 Volts
  • Current Rating: 6 Amps

Environmental

  • Minimum Temperature: -40 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.125 in

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Insert Material Type: Rigid Plastic Insulating Spacers
