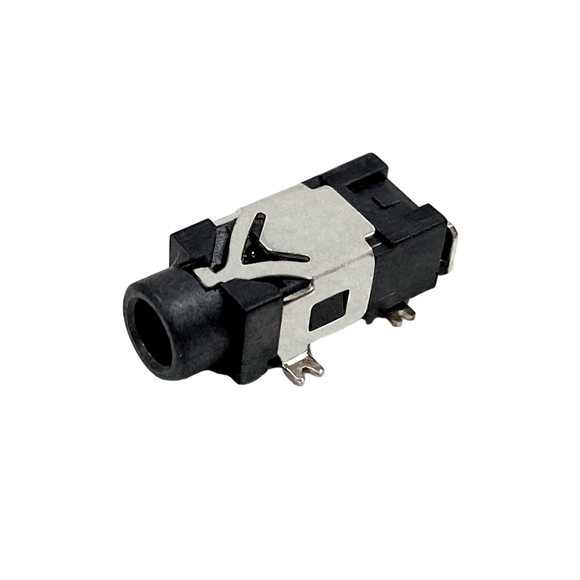

2.5MM" SMT Jack, Stereo, dual open circuit
Enlarge
There are no alternate images available for this product.
MDSMT2BRATRX
2.5MM" SMT Jack, Stereo, dual open circuit
In stock
Drawings:
Symbol, Footprint, 3D Model
Buy Now
View More From This Family
Specifications
Videos
Documents
Configuration
Number of Conductors:
3
Mounting Type:
Panel
Termination Style:
PC Mount
Contact Plating:
Gold
Color:
Black
Locking:
Non-Locking
Sealed:
Not Sealed
Low Profile:
Low Profile
Packaging Type:
Tape & Reel
Standard Connector Type:
2.5mm Jacks & Plugs
Jack-Plug Type:
Jack
PC Mount Style:
Surface Mount
Electrical
Contact Resistance:
0.05 Ohms
Dielectric Withstanding Voltage:
250 Volts
Insulation Resistance:
0.1 MOhms
Current Rating:
3 Amps
Circuit-Schematic:
Double Open
Mechanical
Life Cycle:
5000 Cycles
Environmental
Temperature Range:
-25C to +85C
Minimum Temperature:
-25 C
Maxiumum Temperature:
85 C
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Switchcraft
Material
Body Material:
Thermoplastic
Terminal Material:
Copper Alloy Silver-Plated
Overview Video
2.5mm Surface Mount Jacks, MDSMT Series
