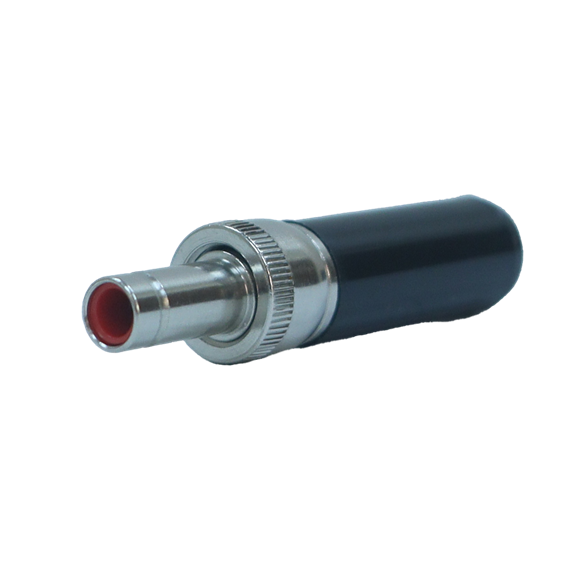

767KZ
Enlarge
767KZ
  • There are no alternate images available for this product.

  •
Switchcraft

767KZ

2.1mm Center Pin, Long Barrel, Locking

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Power Jax
  • Mounting Type: Cord
  • Mounting Feature: Larger Cable Clamp
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Color: Black
  • High Temperature: Standard Temperature
  • High Current: Standard Current
  • Locking: Locking
  • Sealed: Not Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: DC Barrel Connectors
  • Jack-Plug Type: Plug
  • Special Feature: Extended Length
  • Center Pin Size: 2.1 mm

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 24 Volts
  • Current Rating: 5 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Threaded

Environmental

  • Temperature Range: -55?C to +85?C
  • Shielding: Unshielded
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • Touch Proof: Touch Proof

Dimensional

  • Inner Diameter: 0.08 in
  • Cable Opening: 0.218 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy
  • Sleeve Material: Copper Alloy
