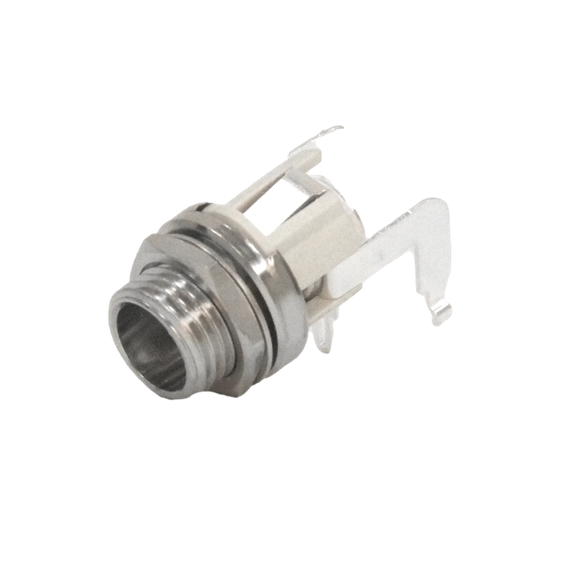

722RAHLP

Configuration

• Number of Conductors: 2
• Product Line: Power Jax
• Mounting Type: Panel
• Termination Style: Right Angle PC Mount
• Contact Plating: Silver
• High Temperature: High Temperature
• High Current: Standard Current
• Locking: Locking
• Sealed: Not Sealed
• Low Profile: Low Profile
• Packaging Type: Bulk
• Standard Connector Type: DC Barrel Connectors
• Shunt: Shunted
• Jack-Plug Type: Jack
• PC Mount Style: Thru-Hole
• Center Pin Size: 2 mm

Electrical

• Contact Resistance: 0.01 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 10000 MOhms
• Voltage Rating: 24 Volts
• Current Rating: 7.5 Amps
• Circuit-Schematic: Single Closed

Mechanical

• Life Cycle: 10000 Cycles
• Coupling Locking Style: Threaded

Environmental

• Temperature Range: -40?C to +105?C
• Shielding: Unshielded
• Minimum Temperature: -40 C
• Maxiumum Temperature: 105 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Contact Plating Type: Silver
• Terminal Material: Copper Alloy
• Sleeve Material: Copper Alloy
