Switchcraft

MT48FNX

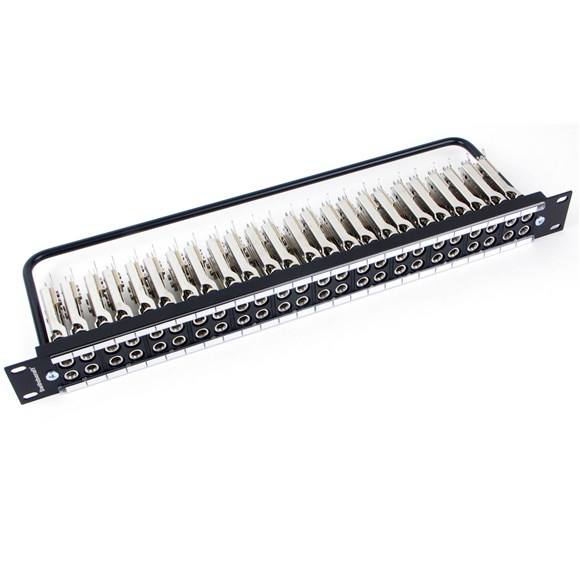

1RU, 2X24 1/4" Longframe Solder Bay w/Cable Tie Bar - Full Normals Out

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Termination Style: Solder Cup
  • Contact Plating: Gold
  • Color: Black
  • Packaging Type: Box
  • Number of Stations: 48
  • Rack Spaces: 1
  • Standard Connector Type: MIL-Type Jacks & Plugs
  • Normalling: Full
  • Front Connector: MT Style Jacks
  • Jack Layout: 2x24

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 140 Volts
  • Current Rating: 0.1 Amps

Mechanical

  • Life Cycle: 30000 Cycles
  • Operating Force: 7 lbs

Environmental

  • Maxiumum Temperature: 50 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Gold Alloy
  • Insert Material Type: Thermoplastic
  • Spring Material: Copper Alloy
  • Frame Material: Thermoplastic
