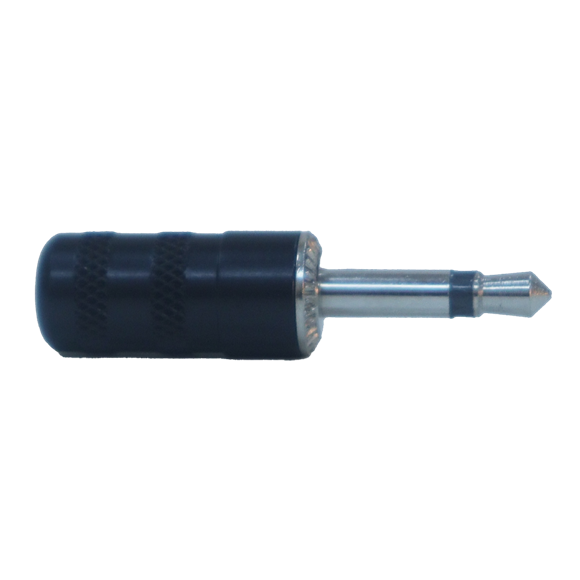

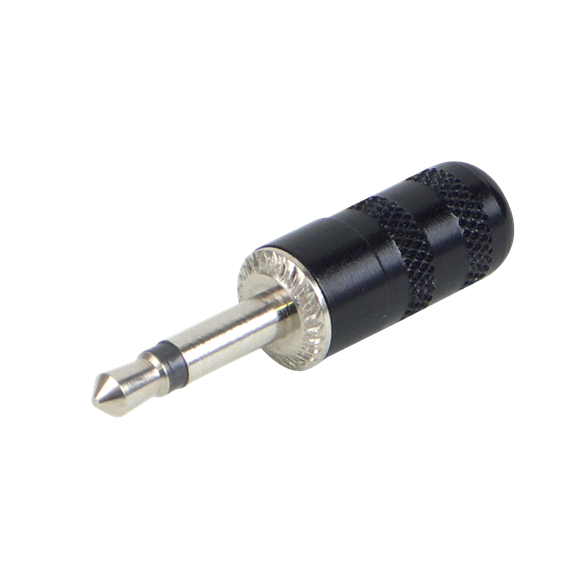

850X

Configuration

• Number of Conductors: 2
• Product Line: Micro-Jax
• Mounting Type: Cable
• Termination Style: Solder Cup
• Color: Black
• Locking: Non-Locking
• Sealed: Not Sealed
• Handle Material: Aluminum
• Packaging Type: Bulk
• Standard Connector Type: 0.101" [2.56mm]
• Jack-Plug Type: Plug

Electrical

• Contact Resistance: 0.01 Ohms
• Dielectric Withstanding Voltage: 250 Volts
• Insulation Resistance: 10000 MOhms
• Current Rating: 0.125 Amps

Mechanical

• Life Cycle: 10000 Cycles
• Operating Force: 0.68 lbs

Environmental

• Temperature Range: -20C to +65C
• Humidity Rating: MIL-STD-202 Method 106
• Salt Spray: MIL-STD-202 Method 101
• Mechanical Shock: MIL-STD-202 Method 107
• Minimum Temperature: -20 C
• Maxiumum Temperature: 65 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Material

• Spring Material: Copper Alloy Silver-Plated
